PART NUMBER |
VMA-C360R Red and VMA-C360G Green |
| Please note: graphics and photos shown depict this model unless specifically stated otherwise. Graphics details and color may vary slightly during production. | |
HISTORICAL INFO |
|
- First Introduced |
2001 11 01 |
- Availability Status |
Shipping as of 2002 02 20 |
- Supercedes |
Brand New Release |
- Superceded by |
Brand New Release |
| - Change Log Highlights | Click Here |
RECOMMENDED FOR |
Intermediate to Senior. Great for Sport Scale. Officially classed as Semi-Scale with unbelievable resemblance and detailing to match the real thing. |
HOURS TO FINISH |
Eight |
| INDEX to DETAILED INFORMATION | |
| INDEX to PICTURES | |
| Horizontal Stab/Elevator | |
| Vertical Stab/Elevator | |
| Cowl | |
| Engine Mount | |
| Power Module | |
| Servo Tray | |
| PICTURES OF WING | |
- Picture of Wing Top and Bottom. Note Servo Covers provided.
|
 |
| Detailed Scale like graphics! Rivets, Panel Lines etc. All Detailing inside the POLYCOTE Enhanced Covering System. |
 |
|
PICTURES OF FUSELAGE |
|
| POLYCOTE ECS Enhanced Covering System! UltraTough Polyester! No Decals! No Layers! No Strips! No Stripes! No Drag! Totally Fuel Proof! Colors and Details are inside the POLYCOTE! All Wood Construction. |
 |
|

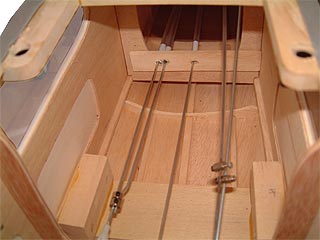

Cargo Bay
Area
Note -All Wood Construction! - Round Bottom! - Clear Side Window! |
 |
| More Pictures of Fuselage | |
|
PICTURES OF HORIZONTAL STABILIZER & ELEVATOR |
|

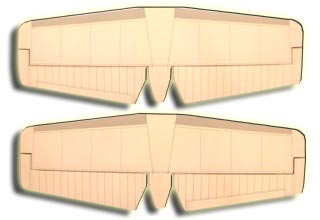

| - Picture of Horizontal Stabilizer and Elevator. Top and Bottom views. |
 |
|
PICTURES OF VERTICAL STABILIZER & RUDDER |
|

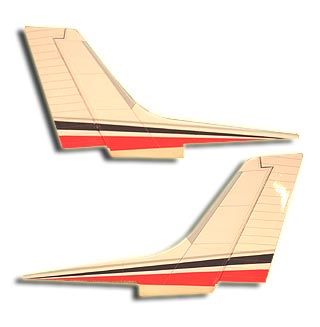

| - Picture of Vertical Stabilizer and Rudder. Left and Right views are identical |
 |
|
PICTURES OF COWL |
|
| - Picture of Fibreglass Cowl from front. Note scale detailing of intake vents.. Completely finished and ready to mount out of the box. Trim sheet applied for top color detail. |
 |
|
PICTURES OF ENGINE MOUNT . |
|
| - Picture of Engine Mount. Front View. Clamps can accomodate wide range of engine mounting lug sizes. |
 |
|
PICTURES POWER MODULE SYSTEM |
|
- Power Module System |
Fixed firewall aft. Removable firewall forward secured to aft firewall with mounting bolt system. Engine mounts, tank & engine mounted to removeable firewall. |

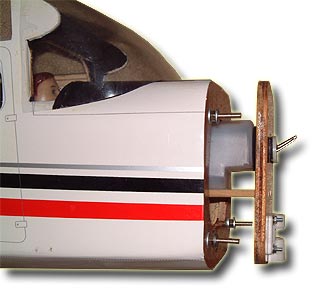

| - Picture of Power Module partially removed from fuselage showing forward removeable firewall with tank (right) and fuselage with aft fixed firewall and retaining studs (left). |
 |

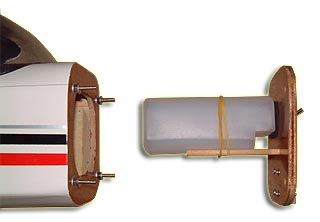

| - Picture of Power Module fully removed from fuselage showing forward removeable firewall with tank (right) and fuselage with aft fixed firewall and retaining studs (left). |
 |
|
PICTURES OF SERVO TRAY |
|
| - Picture of Servo Tray with universally adjustable sliders highlighted in purple shading. Adjust to fit length of Futaba, Airtronics, JR or Hi-Tech standard servo. Tighten screws to lock slider into position. |
 |
