More Pictures of Cessna 182 Skylane 45-60 ARF Wing

.

Top of Right Wing and Bottom of Left Wing

Cross sectional view of wing root before wings are joined. Note cavities for spar joiner and holes for two alignment dowels.





Wings Joined. Note Front Setback and dowels to key into fuselage..

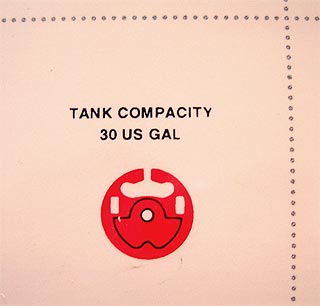

Wing graphics includes Rivets, Panel Lines, Fittings etc.
Detailed Scale like graphics! Rivets, Panel Lines etc. All Detailing inside the POLYCOTE Enhanced Covering System.
