P51D Mustang #VMA-M340U	ORDER NOW!
	$USA 149.95 [Order] [Checkout]
Please Click [Order] Button to Order Now

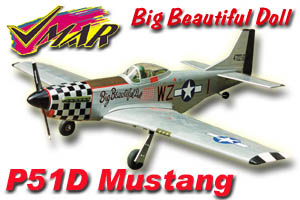

P51D Mustang 40 ARF ECS - Big Beautiful Doll - Info and Specs

Comments.

The upgraded Big Beautiful Doll version of the VMAR P51D Mustang 40 ARF kit was released in January of 2001 and replaced the earlier D-Day version released in 1999. The new release incorporates better more-scale like graphics using the POLYCOTE ECS Enhanced Covering System where all rivets, panel lines and other detailing are inside the covering.  The VMAR P51D Mustang continues to set the standard for ease of assembly, time to finish, completeness, performance, value and low price! The VMAR Mustang comes packed in a colorful, sturdy box with all major components individually bagged.  A great deal of time and effort has been put into the VMA P51D Mustang ARF to minimize assembly time. The VMAR P51D Mustang ARF is the fastest building 40 Size Mustang available! Be in the air in just a few hours! Spend less time building and more time flying!  Our unique "POLYCOTE ECS" covering, "Power Module" and "Fully Sheeted Wings" and are all included with the VMAR P51D 40 ARF Mustang! Hi-Tech Easy to Use features... only from VMAR Manufacturing!

Specs:

Production Specifications and Graphics may differ slightly from that shown or described.

• Wing
  • Span: 60"
  • Area: 580"
  • Wing is symmetrical with tapered Leading Edge and Trailing Edge.
  • Chord is __" at the root and tapers to ___" at the tip.
• Weight: 5.00 lbs without Radio, Engine or Fuel
  • with .46 two stroke engine Flying Weight 6.0-6.5 lbs. Loading 24.8 oz/sq ft
  • with .70 four stroke engine Flying Weight 6.5-7.0 lbs. Loading 26.8 oz/sq ft
• Length: 48" Spinner Back Plate to Rudder TE.
• Engine: .40-.53 two cycle, .52-.70 four cycle
• Radio: 4ch with 5 servos. (1 servo per aileron)
• Display Box
  • Imperial 38.37" Long x 18.31" Wide x 4.72"  Thick. Volume = 1.92 cubic feet
  • Metric   100cm Long x 46.5cm Wide x 12cm Thick. Volume = .0542 cubic metres
• Shipping Box when factory packed 1 Mustang per Shipping Box
  • Imperial 38.61" Long X 18.55" Wide x 4.96" Thick. Volume = 2.06 cubic feet
  • Metric    100.6cm Long x 47.1cm Wide x 12.6cm Thick. Volume = .0597 cubic metres

Features:

• Fastest Assembly Time! We've gone all out to mimize assembly time!
• ARF wood construction! No plastic parts that you can't get when you need them!
  • VCA Medium Super Glue or ZAP-A-GAP from Pacer.
• "POLYCOTE ECS" Lightweight, High Strength Ultra Tough Polyester Covering!
  • Edges and seams will not pick up even in heavy use!
  • All Graphics detailing is inside the covering!
• PowerModule removeable firewall and integrated fuel tank assembly!
  • Faster, Easier engine and tank installation!
  • Faster Easier access for service!
• Prefinished high tech composite Fibreglass cowl! Trim material supplied.
• Pilot figure in cockpit!
• Pricing that is out of this world!
• Terrific flying performance!

Includes:

• Spinner
• Tail wheel assembly
• Wheels
• Universal servo tray
• Heavy duty clamp style engine mount
• Fuel tank and prebent tubing
• Pre-installed push rods and control surfaces
• Hardware!

Support Information:

• Features & Product Information
• Specifications - Brief
• Specifications - Detailed
• High Resolution Pictures.
• Documents.

• "Read Me First" Sheet as of 20021006 (Acrobat PDF File)
• "Read Me First" Sheet as of 20021006 11 x 17 Format (Acrobat PDF File)

• Assembly & Operations Manual as of 20030726 (Acrobat PDF File - 2.9 Mbytes)

Replacement Parts.
