PART NUMBER | VMA-A140X (Red) & VMA-A140Y (Yellow) |
HISTORICAL INFO |
|
- First Introduced |
20021015 |
- Availability Status |
Shipping as of 20021015 |
- Supercedes |
Apache II |
- Superceded by |
Brand New Release |
- Change Log Highlights | [Click Here] |
Note: Pictures shown here are from the Apache II. The Apache III has a windshield, side windows, a straight up engine configuration and heavy duty 7075 T6 Aluminum main gear. | |
RECOMMENDED FOR |
Training - Beginner. Great First Aircraft. Optional Flaperons allow introduction to use of Flaps |
HOURS TO FINISH |
Six |
WING |
|
- Location on Fuselage |
Above fuselage |
- Span |
68-1/2 in |
- Area* |
770 sq in |
- Airfoil |
Flat Bottom |
- Taper |
None |
- Chord Size |
Root = 11-3/16 in Tip = 11-3/16 in |
- Thickness |
1-5/8 in |
- Construction |
Wood - Built Up |
- Aileron Type |
Strip w/Torq Rods |
- Pre-Hinged |
Yes |
- Hinge Type |
Real Hinge with Metal Pin |
- How Joined? |
Wood Dihedral Brace plus 2 Wood Align Pins plus 2 x 1/8" Steel Bolts (optional 30 minute Epoxy Glue) |
- How Mount to Fuse? |
4 Nylon Bolts or #64 Bands depending on consumers preference. |
- Servo for Wing? |
Yes 1 (not provided) |
- Servo Location |
Centre Section Bottom of Wing |
- Second Wing Servo |
Flaperon Ready. Just install optional second servo and use a computer radio to couple ailerons and two servos. |
- Color Top |
White & Red with Blue & Black Trim and Grey panel lines |
- Color Bottom |
Yellow with Black & White Trim |
- Color Pattern Top vs Bottom |
Different (Very) |

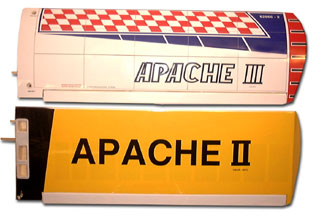

- Picture of Wing Top and Bottom.
Note totally different colors and graphics pattern of the top vs bottom of the wings. Makes for high visibility and easy orientation. |
|
-

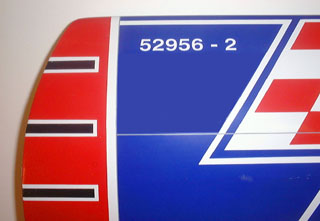

Picture of Wing Tip illustrating graphic detailing. No ARF Trainer has more graphics detailing on an Apache II. |
|
More Pictures of Wing | |
FUSELAGE |
|
- Length* |
46-3/8 in |
- Construction |
Wood - Built Up |
- Pushrods |
Preinstalled |
- Pushrod Material |
Steel Rods w/thread end in plastic guide tubes. Z-bend Rod for Throttle & Nose Wheel |
- Servo Tray |
Preinstalled. Universal adjustable for F/JR/Air/HiT |
- Color |
White with Blue, Red & Black Trim |
- Servos Needed? |
1 Throttle, 1 Elev, 1 Rudder |
- Servo Locations |
Tray Centre Inside Fuse |

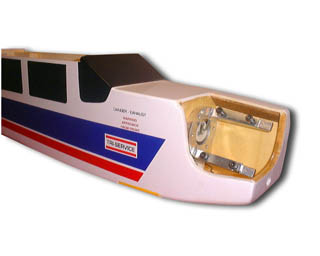

- Picture of Fuselage as seen from right front quarter. | |
HORIZONTAL STAB/ELEV |
|
- Horiz Stab Area |
172 sq in |
- Elevator Area |
33 sq in |
- Construction |
Wood - Built Up |
- Pre-Hinged |
Yes |
- Hinge Type |
Real Hinge with Metal Pin |
- Airfoil |
Slab |
- How Mount to Fuse? |
Insert into horizontal slot in fuselage. Bolts from vertical stabilizer pass through horizontal stabilizer to secure. (optional 30 minute Epoxy Glue) |
- Support Struts? |
No. Not Required |
- Color Top |
White and Blue with Red Trim and Grey Panel Lines |
- Color Bottom |
Yellow with White Trim |
- Color Pattern Top vs Bottom |
Different (Very) |

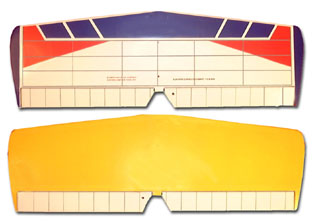

- Picture of Horizontal Stabilizer and Elevator. Top and Bottom views shown. | |
VERTICAL STAB/RUDDER |
|
- Vertical Stab Area |
50 sq in |
- Rudder Area |
15 sq in |
- Construction |
Wood - Built Up |
- Pre-Hinged |
Yes |
- Hinge Type |
Real Hinge with Metal Pin |
- Airfoil |
Slab |
- How Mount to Fuse? |
Insert in vertical slot in fuselage. Bolts from vertical stabilizer pass through horizontal stabilizer and fuselage to engage with unique captive retainers inserted through bottom of fuselage. (optional 30 minute Epoxy Glue) |
- Color |
White and Blue and Red with Grey Panel Lines. |
- Color Pattern Left vs Right | Same |

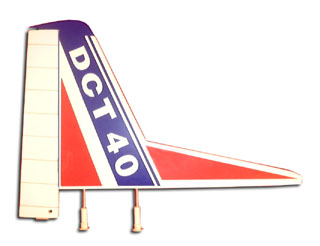

- Picture of Vertical Stabilizer and Rudder. Note Tail Wheel steering coupler pre-installalled at bottom of rudder. Note Bolt-On hardware with unique captive system. No Glue Needed! |
|
COVERING |
|
- "Sure Seal" |
Thermal Shrink Film |
- Self Adhesive |
Low Temperature |
- Patchable |
Yes. Use patch sheet provided or aftermarket use Ultracote Plus or Ultracote Regular. |
- Patch Sheet Provided? |
Yes. White patch sheet provided. |
- Ultracote Approx Color Match | [Click Here] |
LANDING GEAR |
Trike or Tail Dragger - all parts supplied |
- Main Gear |
Unique super duty composite 2.5 aluminum and 5/32 wire bent and clamped to fit. Very Strong. |

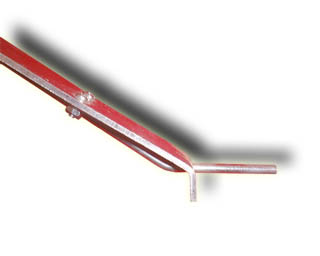

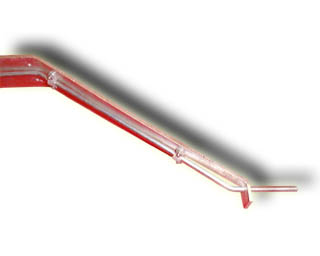

- Picture of Main Gear. Shows right end only. Super Duty Composite system uses 2.5mm aluminum and 5/32" wire to provide the ultimate in lightweight flexible strength! Completely assembled. |
|
- Picture of Main Gear Showing right wheel mounting area only. Wire axle within aluminum structure. No ARF trainer can beat the Apache II's Super Duty rugged long life landing gear system! |
|
- Stance - Between Wheels | 17 in |
- Main Wheels |
Two of 2-7/16 in / 62 mm |
- Main Wheel Pants | na |
- Retract Ready? | No |
- Retracts that fit... | na |
- Nose Gear |
Prebent Chrome Steel with shock coil |
- Nose Wheel |
One of 2-7/16 in / 62 mm |
- Nose Wheel Pant | No |
- Tail Wheel Assembly |
Provided. Assembled with wheel, prebent wire and bracket. |
- Tail Wheel Steerable? | Yes. Via coupling direct to Rudder |
- Tail Wheel |
One 1-3/16 in / 30 mm. Premounted on tail wheel assembly |
COWL |
|
- included | na |
- material | na |
- color | na |
- trim supplied | na |
- trim applied by? | na |
ENGINE |
Not included. See Options |
- 2 cycle |
.40-.53 cu in |
- 4 cycle |
.48-.60 cu in |
ENGINE MOUNT |
Round Aluminum. Clamp Type all pretapped. |
- Firewall Predrilled for Mount? |
Yes |
- Predrilled orientation choices |
na |
- Orientation Recommended |
45 degrees from upright |
- Mount Installed? |
Yes at 45 degrees from vertical |
- Engine Lug Length - Max |
1-3/32 in |
- Engine Width - Max |
At Crankcase = 1-1/2 in |
- Beam Length |
2-1/2 in |
- Power Module System |
No. Single Fixed Firewall |
-
Picture of Engine Mount preinstalled by factory. Mount is solid cast aluminum with all holes pretapped. Engine clamps make installing and aligning engine easy with no drilling required. |
|
More Pictures of Engine Mount | |
RADIO |
Not included. See Options |
- 4 channels |
Need four servos. To use the optional flaperons requires 5 servos and a computer radio. |
SERVO TRAY | Preinstalled. Universal adjustable for F/JR/Air/HiT. |
- Picture of Servo Tray with universally adjustable sliders highlighted in purple shading. Adjust to fit length of Futaba, Airtronics, JR or Hi-Tech standard servo. Tighten screws to lock slider into position. | |
FUEL TANK |
|
- Type |
Plastic |
- Size |
_____ oz |
- Clunk |
Yes |
- Silicone Tubing |
No |
- Metal Tubing |
2 - Prebent & fitted in stopper |

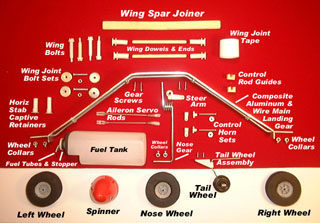

HARDWARE SET | |
WEIGHT |
|
- Empty* - Assembled |
5.01 lbs / 2277 g |
- Flying Dry* - 2 cycle |
6.35 lbs / 2886 g |
- Flying Dry* - 4 cycle |
6.85 lbs / 3113 g |
WING LOADING |
|
- Empty* - Assembled |
15 oz/sq ft |
- Flying Dry* - 2 cycle |
19 oz/sq ft |
- Flying Dry* - 4 cycle |
20.5 oz/sq ft |
SET UP SPECS |
|
- CG Location |
3.5 - 4.0 inch from leading edge of wing |
- Aileron Throw |
3/8 in up, 3/8 in down, 3/4 in total |
- Rudder Throw |
1/2 in left, 1/2 in right, 1 in total |
- Elevator Throw |
1/4 in up, 1/4 in down, 1/2 in total |
- Engine Thrust Line |
1-1/2 in from top of firewall |
- Engine Offset |
None |
SHIPPING BOX |
|
- Cardboard |
Brown |
- Size Length x Width x Depth |
46 x 18.75 x 4.75 in / 1168 x 476 x 121 mm |
- Length plus Girth |
93 in / 2362 mm |
- Volume |
2.37 cu ft / .0673 cu m |
- Weight with kit |
10.8 lbs / 4636 g |
DISPLAY BOX |
|
- Cardboard |
White |
- Protected by |
Plastic Bag & Shipping Box |
- Size Length x Width x Depth |
45.25 x 18.25 x 4.25 in / 1149 x 464 x 108 mm |
- Length plus girth |
90.25 in / 2292 mm |
- Volume |
2.03 cu ft / .0576 cu m |
- Weight with kit & protective plastic bag |
8.5 lbs / 3864 g |
- Label front colors |
Colors = Blue, White, Red, Yellow and Green |
- Label front size | 30-1/2 x 15-9/16 in / 775 x 395 mm |
- Label front picture. | |
- Label end panel |
Colors = Blue, White, Red, Yellow and Green |
- Label end panel size | 16-1/4 x 3-15/16 in / 413 x 100 mm |
- Label end panel picture. | |
* NOTES & LEGEND |
|
- Accuracy of Dimensions | Dimensions provided here are within +/- 3% in production. |
- na |
Not applicable this model |
- blank data or information | Not known at this time |
- [info?] | Estimated. Yet to be confirmed. |
- Area* of Wing |
Includes wing saddle area |
- Length* of Fuse |
From Spinner back plate to Trailing Edge of Rudder |
- Empty* Weight |
No radio, engine or fuel |
- Flying Dry* Weight |
With radio, engine. No fuel |
- Flying Dry* Loading |
With radio, engine. No fuel |
