More Pictures of Apache II Horizontal Stabilizer

 a00142 300x201 drop shadow copy.jpg (28793 bytes)

Picture of Horizontal Stabilizer. Top and Bottom views shown.

 a00142 horiz stab top and bottom.jpg (22549 bytes)


Tail section of fuselage before mounting horizontal and vertical stabilizers showing machined slot for horizontal stabilizer.

View from left side of fuselage looking slightly aft.

 a00142 fuse left rear with clevis copy.jpg (12831 bytes)

Top view of horizontal stabilizer inserted into machined slot in fuselage tail section.

Note holes for the vertical stabilizer mounting bolts which will pass from the vertical stab through the fuselage, through the horizontal stab to retainers on the bottom of the fuselage.

a00142 horiz stab installation first step copy.jpg (17193 bytes)

View from top right side of tail section looking slightly forward. Note horizontal stab inserted into machined slot in fuselage tail section and vertical stab mounting bolts partically inserted into fuselage and horizontal stab. The vertical stab is now ready to be pushed down and into the machined slot in the top of the fuselage

 a00142 vert stab install first step copy.jpg (22903 bytes)

View from top right side of tail section looking slightly aft. Note horizontal stab inserted into machined slot in fuselage tail section and vertical stab mounting bolts partically inserted into fuselage and horizontal stab. The vertical stab is now ready to be pushed down and into the machined slot in the top of the fuselage

 a00142 vert stab install first step b copy.jpg (24607 bytes)

View from bottom of fuselage after vertical stab has been pushed down and into the machined slot in the top of the fuselage. Note the two holes in bottom of fuselage. Within the holes can be seen the bottom of the vertical stab mounting bolts

 a00142 vert stab bolts from bottom copy.jpg (13494 bytes)

View from bottom of fuselage after vertical stab has been pushed down and into the machined slot in the top of the fuselage. Note the two screw on retainers that have been loosely fitted into the fuselage to engage with the vertical stab mouting bolts. Ready for tightening to cinch the vertical and horizontal stabilizers into position.

 a00142 vert stab captive retainers loose copy.jpg (17836 bytes)

View from bottom of fuselage after the two screw on retainers have been tightened to cinch the vertical and horizontal stabilizers into position and attach them firmly to the fuselage.

a00142 vert stab captive retainers tight copy.jpg (13002 bytes)

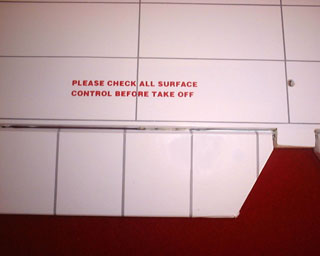

Picture of wing warning near elevator. A reminder that just a quick check before flying can save the day!

Note panel line detailing... even on the elevator!



 a00142 horiz stab check warnings.jpg (17119 bytes)

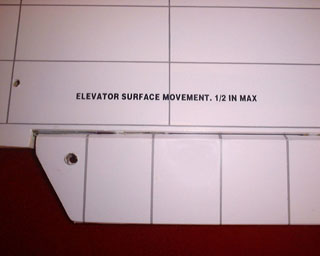

Picture of throw specifications near elevator.

Never be in doubt... we've printed the throws right into the covering!

 a00142 horiz stab elevator throw labels.jpg (16821 bytes)
