More Pictures of Discovery 40 ARF Wing |
.  |
|
Fuselage Pictures Shown in Red. "Blue" Model substututes Dark Blue for Red and Light Blue for Orange. Yellow wing bottom is the same for both models. |
|
Top of Right Wing and Bottom of Left Wing |
 |
|
Top of Left Wing and Bottom of Right Wing |
 |

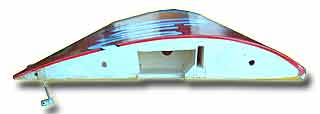

Cross sectional view of wing root before wings are joined. Note cavities for spar joiner and servo, holes for two alignment dowel. |
|
Wings being joined. Note spar joiner and alignment dowels. |
|
