More Pictures of RCAF Harvard Wing

 at0014c 300x201 drop shadow copy.jpg (21245 bytes)

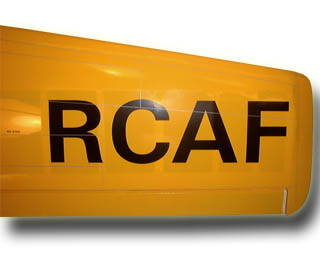

Top of Right Wing showing RCAF Graphic.

at0014cwinggraphicrcaf copy.jpg (18562 bytes)

Bottom of Left Wing showing Graphic

Cross sectional view of wing root before wings are joined. Note cavity for spar joiner and holes for two alignment dowels at0014c_harvard_wing_root_copy.jpg (9868 bytes)

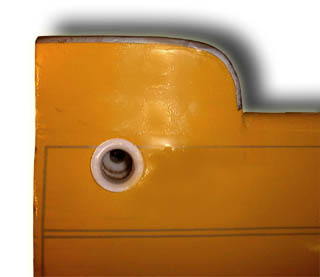

Picture of wing bolt alignment insert.

Note at top of picture the "front flange" added to wing for scale like appearance where wing meets fuselage wing saddle.

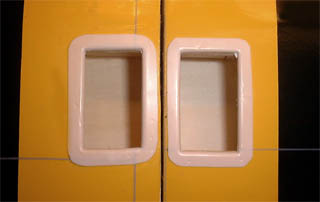

Wing servo tray liners. Only one servo is needed for standard aileron operation. Note provision for a second servo if flaperon capability is wanted.

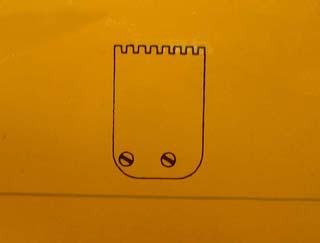

Graphic Detailing.

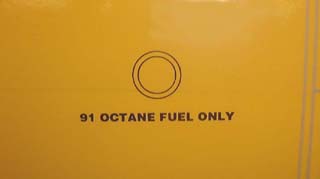

Graphic Detailing.


Graphic Detailing.
