HERE'S A QUICK AND EASY WAY TO ORDER EVERYTHING YOU NEED TO GET YOUR L4 GRASSHOPPER OR J3 CUB FLYING!

First... order your favorite color:

Then Consider these Add On's. It's as Easy as A, B, C, D



A1.  ELECTRIC POWER PACK FOR YOUR J3 CUB & L4 GRASSHOPPER:

SAVE $40! VMAX ELECTRIC POWER PACK for J3 & L4 10-15 ARF ECS <<< click to order

Cash In on Big Savings when you order the all in one Electric Power Pack in COMBO with your J3 or L4.

(Click on Image for HiRes Version)

The Electric Power Pack contains all of the "power" related items you need for your J3 or L4. These items work as a system... They've all been tested and are what we recommend as the power system for your J3 or L4.

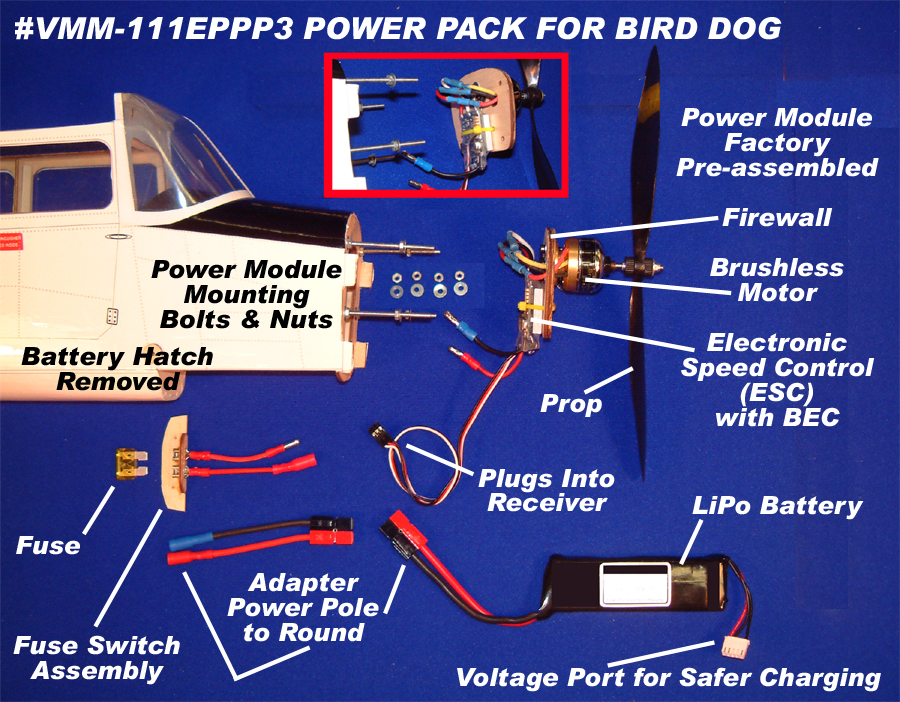

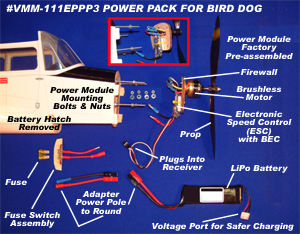

This illustration shows the Power Pack for the VMAR L19 Bird Dog. The Power Pack for the VMAR J3 & L4 utilizes the same components except for the firewall. The Power Pack for the J3 & L4 contains a firewall that has been pre-drilled to fit the J3 & L4  fuselage.

  • The Electric Power Pack includes the following items & factory installation (as indicated) at a significant savings: (click any item to order individually. No Need to order individually if you have ordered the Power Pack itself.)
    • VMAX Electric Motor - Brushless - 11.1V 15A 165W Max [ Order]
    • VMAX Electronic Speed Control (ESC) - For VMAX Electric Motor [ Order]
    • POLYPRO LiPo Battery 11.1V (3 Cell) 1800mAh 20C with power wires & Voltage Port connector[Order]
    • Connector Set - 45 Amp PowerPole - Red & Black [Order]
    • Connector Set - 45 Amp PowerPole - Installation (onto Battery power wires) [Order]
    • Adapter to connect Battery with pre-installed PowerPole connectors directly to VMAR Round [Order]
    • Male connectors included with wiring harness.
    • J3 & L4 Firewall pre-Drilled for VMAX Brushless Motor [Order]
    • J3 & L4 Fuse Switch Assembly  [Order]
    • Fuse - 20 Amp - Spade Type  [Order]
    • Master Airscrew Propeller - 8 x 5 - Narrow Electric [Order]
    • VRS - Aileron Extension & Y Harness Universal 12" [Order]





A2.  ELECTRIC POWER MODULE FOR YOUR J3 CUB & L4 GRASSHOPPER:

SAVE $10! VMAX ELECTRIC POWER MODULE for J3 & L4 10-15 ARF ECS <<< click to order

If you don't need the complete Power Pack but do need the recommended Brushless Motor and ESC order our Power Module.

(Click on Image for HiRes Version

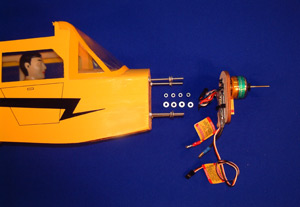

The Electric Power Module contains the recommended Brushless Motor and the matching Electronic Speed Control (ESC) both pre-mounted on the firewall. J3 shown above, L4 is same Power Module. Makes installation fast and simple! If you've got your own battery... our Power Module is the way to go.

  • The Electric Power Module includes the following items & factory installation (as indicated) at a significant savings: (click any item to order individually. No Need to order individually if you have ordered the Power Module itself.)
    • VMAX Electric Motor - Brushless - 11.1V 15A 165W Max [ Order]
    • VMAX Electronic Speed Control (ESC) - For VMAX Electric Motor [ Order]
    • J3 & L4 Firewall pre-Drilled for VMAX Brushless Motor [Order]



B.  SERVOS:

AIRTRONICS or VRS... Your Choice!

AIRTRONICS Super Microlite Servo with Universal Z Connector <<< click for prices & to order
  • FASTEST & STRONGEST!
  • #AIR-94091Z
  • Weight: .32oz (9g)
  • Torque: 18 in oz
  • Speed .12sec/60deg@4.8V
  • Size: .91x.44x.87 in (23x13x22mm)
  • Plug compatible with Airtronics Z, Futaba, JR
  • With arm, grommets & ferrules

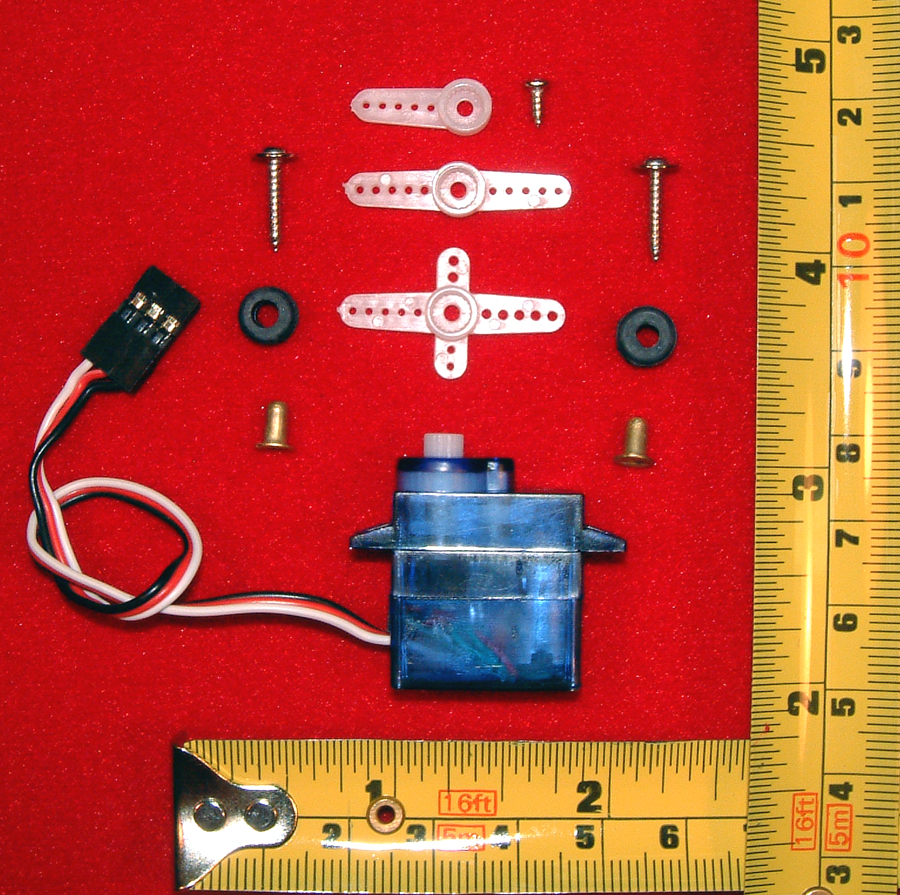

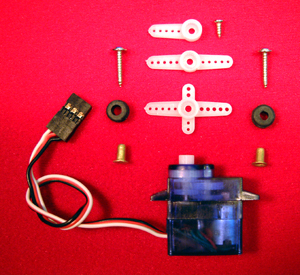

VRS Super Microlite Servo  BEST PRICE! <<< click for prices & to order
  • GOOD PERFORMER, BEST PRICE!
  • Order 4 at Regular Price then Order 1 for FREE!
  • #VRS-140P08VS
  • Weight: .28oz (8g)
  • Torque: 14 in oz
  • Speed .19sec/60deg@4.8V
  • Size: .90x.48x.94 in (22.9x12.2x24.2mm)
  • Plug compatible with Airtronics Z, Futaba, JR
  • With arm, grommets & ferrules



 (Click on Image for HiRes Version)

C.  RADIOS:

For Airtronics Radio Systems that have been specially prepared for use with VMAR Electric ARF's please click Radios for your VMAR Electric ARF



D. ACCESSORIES:

POLYPRO - LITHIUM POLYMER (LiPo) BATTERY PACKS:

Standard Flight Time LiPo Battery Pack

Extended Long Duration Flight Time LiPo Battery Packs

Other POLYPRO LiPo Battery Packs.

The three packs listed above have been tested with our models and found to offer excellent performance. We are not able to recommend other voltages or capacities but recognize that modelers may wish to experiment on their own. For a listing of other POLYPRO LiPo Battery Packs please click >>> POLYPRO Battery Packs

Connectors for POLYPRO battery packs.

POLYPRO battery packs come with heavy duty wiring pre-connected to the battery. You can install your own favorite connector to match the equipment and wiring harness in your model.

We recommend Power Pole 45 Amp connectors for use with LiPo packs and supply Power Pole connectors with our Power Packs. If you are ordering a stand alone POLYPRO battery pack (see above) we can supply Power Pole connectors for you to install yourself or or we can install them for you. We strongly recommend having us install Power Pole connectors for you if you are going to use your POLYPRO battery pack in one of our models. We have the correct parts and crimping tools to do the job right. Please see Power Pole connector options and pricing below.

  • Connector Set - 45 Amp PowerPole - Red & Black [Order]
  • Connector Set - 45 Amp PowerPole - Installation (onto Battery power wires) [Order]
