PART NUMBER |
VMA-M024 |
||||||||||||||||||||||||||||||||||||||||||
HISTORICAL INFO |
|||||||||||||||||||||||||||||||||||||||||||
- First Introduced |
2000 02 20 |
||||||||||||||||||||||||||||||||||||||||||
- Availability Status |
Shipping as of 2000 03 01 |
||||||||||||||||||||||||||||||||||||||||||
- Supercedes |
Brand New Release |
||||||||||||||||||||||||||||||||||||||||||
- Superceded by |
Brand New Release | ||||||||||||||||||||||||||||||||||||||||||
- Change Log Highlights | Click Here | ||||||||||||||||||||||||||||||||||||||||||
RECOMMENDED FOR |
Intermediate and up. Sport Aerobatics |
||||||||||||||||||||||||||||||||||||||||||
HOURS TO FINISH |
Eight |
||||||||||||||||||||||||||||||||||||||||||
WING |
|||||||||||||||||||||||||||||||||||||||||||
- Location on Fuselage |
Below Fuselage |
||||||||||||||||||||||||||||||||||||||||||
- Span |
61-1/2 in. (1562 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Area* |
560 sq in. (3613 sq cm) |
||||||||||||||||||||||||||||||||||||||||||
- Airfoil |
Symmetrical |
||||||||||||||||||||||||||||||||||||||||||
- Taper |
Yes. Leading Edge & Trailing Edge |
||||||||||||||||||||||||||||||||||||||||||
- Chord Size |
Root = 10-3/8 in. (26.4 mm). Tip = 7.375 in. (187 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Thickness |
1-3/4 in. ( 44 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Aileron Type |
Strip with pre-installed torque rods |
||||||||||||||||||||||||||||||||||||||||||
- Pre-Hinged? |
Yes. 4 Hinges per Aileron |
||||||||||||||||||||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. Inboard and outboard on both ailerons. 4 pins per pinned hinge. | ||||||||||||||||||||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||||||||||||||||||||
- How Joined? |
Wood Dihedral Brace & 2 Wood Align Pins & 30 minute Epoxy Glue |
||||||||||||||||||||||||||||||||||||||||||
- How Mount to Fuse? |
2 Nylon Bolts & 2 pre-installed dowels in the leading edge of wing that key to receiving holes in the fuselage. |
||||||||||||||||||||||||||||||||||||||||||
- Servo for Wing? |
Yes 1 |
||||||||||||||||||||||||||||||||||||||||||
- Servo Location |
Top centre of wing. |
||||||||||||||||||||||||||||||||||||||||||
- Second Wing Servo |
No |
||||||||||||||||||||||||||||||||||||||||||
- Color Top |
Flame Red on White with Black & Deep Blue Trim and Grey Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Bottom |
Flame Red on White with Black & Deep Blue Trim and Grey Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Pattern Top vs Bottom |
Similar |
||||||||||||||||||||||||||||||||||||||||||
FUSELAGE |
|||||||||||||||||||||||||||||||||||||||||||
- Length* |
43 in. (1092 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Pushrods |
Pre-installed |
||||||||||||||||||||||||||||||||||||||||||
- Pushrod Material |
Steel Rods w/thread on both ends. Running in plastic guide tubes. Variable Length two piece rod for throttle w/thread on both ends. Plain rod with EZ Connectors for Nose Gear Steering. |
||||||||||||||||||||||||||||||||||||||||||
- Servo Tray |
Pre-installed. Universal Adjustable for F/JR/Air/HiT |
||||||||||||||||||||||||||||||||||||||||||
- Color |
Flame Red & Black on White with Deep Blue & Dark Yellow Trim & Grey Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Servos Needed? |
1 Throttle, 1 Elev, 1 Rudder |
||||||||||||||||||||||||||||||||||||||||||
- Servo Locations |
Tray Centre Inside Fuse |
||||||||||||||||||||||||||||||||||||||||||
HORIZONTAL STAB/ELEV |
|||||||||||||||||||||||||||||||||||||||||||
- Horiz Stab Span | 22 in. (559 mm) | ||||||||||||||||||||||||||||||||||||||||||
- Horiz Stab Area |
110 sq in. (710 sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Elevator Area |
37 sq in. (97 sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Pre-Hinged |
Yes. 6 Hinges. |
||||||||||||||||||||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. Inboard and outboard on stabilizers.4 Pins per pinned hinge. | ||||||||||||||||||||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||||||||||||||||||||
- Airfoil |
Slab |
||||||||||||||||||||||||||||||||||||||||||
- How Mount to Fuse? |
Install into machined slot in fuselage and glue with 30 Minute Epoxy. |
||||||||||||||||||||||||||||||||||||||||||
- Support Struts? |
No. Not Required |
||||||||||||||||||||||||||||||||||||||||||
- Color Top |
Flame Red with Black Lettering & Grey Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Bottom |
Flame Red with Black Lettering & Grey Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Pattern Top vs Bottom |
Similar | ||||||||||||||||||||||||||||||||||||||||||
VERTICAL STAB/RUDDER |
|||||||||||||||||||||||||||||||||||||||||||
- Vertical Stab Area |
29 sq in. (187 sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Rudder Area |
19 in. (123 sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Pre-Hinged |
Yes. 2 Hinges. |
||||||||||||||||||||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. Upper and Lower on Rudder. 4 pins per pinned hinge. | ||||||||||||||||||||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||||||||||||||||||||
- Airfoil |
Slab |
||||||||||||||||||||||||||||||||||||||||||
- How Mount to Fuse? |
Install into machined slot if fuselage and glue with 30 Minute Epoxy |
||||||||||||||||||||||||||||||||||||||||||
- Color |
Flame Red & White with Black Letters & Grey Panel Lines. | ||||||||||||||||||||||||||||||||||||||||||
- Color Pattern Left vs Right | Same | ||||||||||||||||||||||||||||||||||||||||||
COVERING |
|||||||||||||||||||||||||||||||||||||||||||
- "Sure Seal" |
Thermal Shrink Film |
||||||||||||||||||||||||||||||||||||||||||
- Self Adhesive |
Low Temperature |
||||||||||||||||||||||||||||||||||||||||||
- Patchable |
Yes. Use patch sheet provided or aftermarket use Ultracote Plus or Ultracote Regular. |
||||||||||||||||||||||||||||||||||||||||||
- Patch Sheet Provided? |
Yes, White and Black. Use Factory Patch Sheets if possible. Aftermarket covering will not match colors exactly. |
||||||||||||||||||||||||||||||||||||||||||
- Ultracote
System Approx
Color Match
Note: We recommend Ultracote Plus and a Heat GUN for patching using after market covering. |
|
||||||||||||||||||||||||||||||||||||||||||
LANDING GEAR |
Trike |
||||||||||||||||||||||||||||||||||||||||||
- Main Gear |
5/32 in. (4 mm) Wire |
||||||||||||||||||||||||||||||||||||||||||
- Stance - Between Wheels | 12 in. (305 mm) between inboard side of wheels. | ||||||||||||||||||||||||||||||||||||||||||
- Main Wheels |
Two of 2-7/16 in. (62 mm) Ultralight Treaded |
||||||||||||||||||||||||||||||||||||||||||
- Main Wheel Pants | na | ||||||||||||||||||||||||||||||||||||||||||
- Wheels Pants made of? | na | ||||||||||||||||||||||||||||||||||||||||||
- Retract Ready? | na | ||||||||||||||||||||||||||||||||||||||||||
- Retracts that fit... | na | ||||||||||||||||||||||||||||||||||||||||||
- Nose Gear |
5/32 in. (4 mm) Wire |
||||||||||||||||||||||||||||||||||||||||||
- Nose Wheel |
One of 2-7/16 in. (62 mm) Ultralight Treaded |
||||||||||||||||||||||||||||||||||||||||||
- Nose Wheel Pants | na | ||||||||||||||||||||||||||||||||||||||||||
- Nose Wheel Pant made of? | na | ||||||||||||||||||||||||||||||||||||||||||
- Tail Wheel Assembly |
na. Trike Gear | ||||||||||||||||||||||||||||||||||||||||||
- Tail Wheel |
na. Trike Gear | ||||||||||||||||||||||||||||||||||||||||||
- Tail Wheel Steering Mechanism | na. Trike Gear | ||||||||||||||||||||||||||||||||||||||||||
COWL |
|||||||||||||||||||||||||||||||||||||||||||
- included | Yes. Black for Top of Cowl. | ||||||||||||||||||||||||||||||||||||||||||
- material | FIbreglass | ||||||||||||||||||||||||||||||||||||||||||
- color | True Red | ||||||||||||||||||||||||||||||||||||||||||
- trim supplied? | Yes. Painted with Epoxy | ||||||||||||||||||||||||||||||||||||||||||
- trim applied by? | Modeller after fitting Engine & Cowl. | ||||||||||||||||||||||||||||||||||||||||||

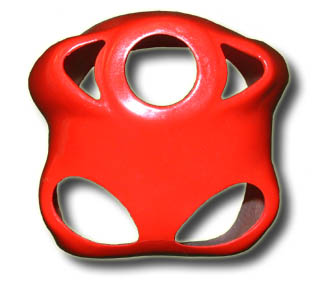

Front view of Cowl.
Note: Scale like resemblance to full size T34C (Turbo) Cowl. |
|||||||||||||||||||||||||||||||||||||||||||

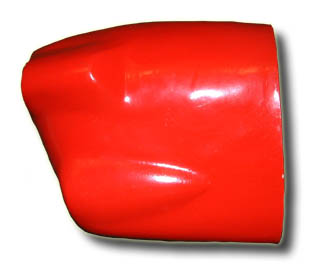

Side view of Cowl.
Note: Scale like resemblance to full size T34C (Turbo) Cowl.
|
|||||||||||||||||||||||||||||||||||||||||||
ENGINE |
Not included. See Options |
||||||||||||||||||||||||||||||||||||||||||
- 2 cycle |
40-.53 cu in. (6.5-8.0cc). GMS-47PRO or Enya 50CX Recommended. |
||||||||||||||||||||||||||||||||||||||||||
- 4 cycle |
.52-.70cu in. (8-10.6 cc) | ||||||||||||||||||||||||||||||||||||||||||
ENGINE MOUNT |
T-bar Beams? Aluminum Clamp Type all pretapped |
||||||||||||||||||||||||||||||||||||||||||
- Firewall Predrilled for Mount? |
No. To allow after market orientation of engine. |
||||||||||||||||||||||||||||||||||||||||||
- Predrilled orientation choices |
Modellers choice | ||||||||||||||||||||||||||||||||||||||||||
- Orientation Recommended |
Inverted | ||||||||||||||||||||||||||||||||||||||||||
- Mount Installed? |
No. To allow after market orientation of engine. | ||||||||||||||||||||||||||||||||||||||||||
- Engine Lug Length - Max | 1-5/8 in. (41mm) | ||||||||||||||||||||||||||||||||||||||||||
- Engine Width - Max | At Crankcase = 1-9/16 in. (39 mm) when mounting upright or inverted. 1-7/8 in. (47 mm) when mounting with 90 or 270 degrees of rotation. | ||||||||||||||||||||||||||||||||||||||||||
- Beam Length | 2-7/8 in. (73 mm) flat useable. 3-1/2 in. (89mm) from firewall to tips. | ||||||||||||||||||||||||||||||||||||||||||
- Power Module System |
Yes. Fixed firewall aft. Removeable firewall forward secured to aft firewall with mounting bolt system. Engine mounts and Engine mounted to removeable firewall. |
||||||||||||||||||||||||||||||||||||||||||
- Picture of Engine Mount. Front View. Clamps can accomodate a wide range of engine mounting lug sizes. | |||||||||||||||||||||||||||||||||||||||||||
More Pictures of Engine Mount | |||||||||||||||||||||||||||||||||||||||||||
RADIO |
Not included. See Options |
||||||||||||||||||||||||||||||||||||||||||
- 4 channels |
Need 4 servos |
||||||||||||||||||||||||||||||||||||||||||
SERVO TRAY | Preinstalled. Universal adjustable for F/JR/Air/HiT. | ||||||||||||||||||||||||||||||||||||||||||
- Picture of Servo Tray with universally adjustable sliders highlighted in purple shading. Adjust to fit length of Futaba, Airtronics, JR or Hi-Tech standard servo. Tighten screws to lock slider into position. | |||||||||||||||||||||||||||||||||||||||||||
More Pictures of Servo Tray | |||||||||||||||||||||||||||||||||||||||||||
FUEL TANK |
|||||||||||||||||||||||||||||||||||||||||||
- Type |
Plastic |
||||||||||||||||||||||||||||||||||||||||||
- Size |
10.5 oz / 300 cc |
||||||||||||||||||||||||||||||||||||||||||
- Clunk |
Yes |
||||||||||||||||||||||||||||||||||||||||||
- Silicone Tubing |
No |
||||||||||||||||||||||||||||||||||||||||||
- Metal Tubing |
2 - Prebent & fitted in stopper |
||||||||||||||||||||||||||||||||||||||||||
WEIGHT |
|||||||||||||||||||||||||||||||||||||||||||
- Empty* - Assembled |
4-1/4 lbs (1932 g) | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 2 cycle |
6 - 6-1/2 lbs (2727 - 2954 g) | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 4 cycle |
6-1/4 - 6-3/4 lbs (2841 - 3068 g) | ||||||||||||||||||||||||||||||||||||||||||
WING LOADING |
|||||||||||||||||||||||||||||||||||||||||||
- Empty* - Assembled |
17.5 oz/sq ft @ 4-1/4 lbs | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 2 cycle |
25.7 oz/sq ft @ 6-1/4 lbs | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 4 cycle |
26.7 oz/sq ft @ 6-1/2 lbs | ||||||||||||||||||||||||||||||||||||||||||
SET UP SPECS |
|||||||||||||||||||||||||||||||||||||||||||
- CG Location |
3 to 3-1/2 in. (78-86 mm) back from the leading edge of the wing with the tank installed but empty. Ideally 3-1/4 (82 mm) back from leading edge of the wing with tank empty. CG is measured with the engine, tank, radio gear and all components installed but WITH NO FUEL IN THE TANK. | ||||||||||||||||||||||||||||||||||||||||||
- Aileron Throw. (Use Low Rate for first flights and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||||||||||||||||||||
- Rudder Throw at Widest section of Rudder. (Use Low Rate for first flights and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||||||||||||||||||||
- Elevator Throw (Use Low Rate for first flights and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||||||||||||||||||||
- Engine Thrust Line |
Horizontal = 1-7/16 down from top of firewall. Vertical = centred left to right. |
||||||||||||||||||||||||||||||||||||||||||
- Engine Offset |
None. Up to 2 degrees to the right may assist with take offs but is not required. 2 degrees right thrust is about 1/8 in. of gap between the forward and fixed firewalls on the left side. |
||||||||||||||||||||||||||||||||||||||||||
SHIPPING BOX |
|||||||||||||||||||||||||||||||||||||||||||
- Cardboard |
Brown |
||||||||||||||||||||||||||||||||||||||||||
- Size Length x Width x Depth |
42-3/4 x 17-3/4 x 5-1/8 in. (1086 x 451 x 130 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Length plus Girth |
88-1/2 in. (2248 mm) | ||||||||||||||||||||||||||||||||||||||||||
- Volume |
2.25 cu ft (.0637 cu m) | ||||||||||||||||||||||||||||||||||||||||||
- Weight with kit |
10-1/2 lbs (4773 g) | ||||||||||||||||||||||||||||||||||||||||||
SHIPPING INFO | |||||||||||||||||||||||||||||||||||||||||||
- Shipping Method in Canada. | Canpar most locations (enroute time 1-3 business days west, 5-10 business days east). Canada Post to remote locations in the south and to YT, NWT, Nunavut in the north. | ||||||||||||||||||||||||||||||||||||||||||
- Shipping Method to USA lower 48 states | UPS (enroute time 5-10 business days west, 10-14 business days east) | ||||||||||||||||||||||||||||||||||||||||||
- Shipping method to Hawaii, USA, APO or USA possessions. | United States Postal Service (enroute time 14-28 business days surface, 3-7 business days expedited) | ||||||||||||||||||||||||||||||||||||||||||
- Shippable outside Canada or USA by Air or Surface Mail? | - No. Length plus Girth exceeds limit of 78.8 in (2 m) and/or Length exceeds limit of 39.4 (1 m) | ||||||||||||||||||||||||||||||||||||||||||
- Shippable outside Canada or USA by Air or Surface Mail if separated into multiple boxes? | - [Possibly? Depends of Fuselage length without engine mount, cowl or rudder mounted] | ||||||||||||||||||||||||||||||||||||||||||
- Shippable outside Canada or USA by Fedex? | - Yes. Refer to www.fedex.com for quote. Size, weight and location will be required. | ||||||||||||||||||||||||||||||||||||||||||
DISPLAY BOX |
|||||||||||||||||||||||||||||||||||||||||||
- Cardboard |
White |
||||||||||||||||||||||||||||||||||||||||||
- Protected by |
Plastic Bag & Shipping Box |
||||||||||||||||||||||||||||||||||||||||||
- Size Length x Width x Depth |
41-3/8 x 17 x 4-3/4 in. (1051 x 432 x 121 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Length plus girth |
84-7/8 in. (2155 mm) | ||||||||||||||||||||||||||||||||||||||||||
- Volume |
1.94 cu ft (.0549 cu m) | ||||||||||||||||||||||||||||||||||||||||||
- Weight with kit & protective plastic bag. |
8-3/8 lbs (3807g) | ||||||||||||||||||||||||||||||||||||||||||
- Label front colors |
Colors = Green with Black, Yellow, Red and White Graphics. |
||||||||||||||||||||||||||||||||||||||||||
- Label covers all of Display Box except Bottom? | 95% Coverage. | ||||||||||||||||||||||||||||||||||||||||||
- Label front size | 39-5/8 x 17 in. (1006 x 432 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Label end panel colors |
Colors = Green with Black, Yellow, Red and White Graphics. |
||||||||||||||||||||||||||||||||||||||||||
- Label end panel size | 16-1/8 x 3-7/8 in. (410 x 98 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Label side panel colors | Colors = Green with Black, Yellow, Red and White Graphics. | ||||||||||||||||||||||||||||||||||||||||||
- Label side panel size | 39-7/8 x 3-1/4 in. (1006 x 83 mm) | ||||||||||||||||||||||||||||||||||||||||||
* NOTES & LEGEND |
|||||||||||||||||||||||||||||||||||||||||||
- Accuracy of dimensions | Dimensions provided here are within +/-3% in production. | ||||||||||||||||||||||||||||||||||||||||||
- na |
Not applicable this model |
||||||||||||||||||||||||||||||||||||||||||
- blank data or information | Not known at this time | ||||||||||||||||||||||||||||||||||||||||||
- [info?] | Estimated. Yet to be confirmed. | ||||||||||||||||||||||||||||||||||||||||||
- Area* of Wing |
Includes wing saddle area |
||||||||||||||||||||||||||||||||||||||||||
- Length* of Fuse |
From Spinner back plate to Trailing Edge of Rudder |
||||||||||||||||||||||||||||||||||||||||||
- Empty* Weight |
No radio, engine or fuel |
||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* Weight |
With radio, engine. No fuel |
||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* Loading |
With radio, engine. No fuel |
