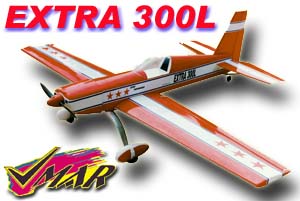

PART NUMBER |
VMA-E0014 |
HISTORICAL INFO |
|
- First Introduced |
Summer 1998 |
- Availability Status |
Available |
- Supercedes |
Brand New Release |
- Superceded by |
Still Current as of 990411 |
| - Change Log Highlights | [Click Here] |
RECOMMENDED FOR |
Intermediate Flyer |
Great for Sport & Introductory Pattern |
|
HOURS TO FINISH |
Eight |
WING |
|
- Location on Fuselage |
Below |
- Span |
58-3/8 in / 1482mm |
- Area* |
510 sq in |
- Airfoil |
Symmetrical |
- Taper |
Tapered Leading & Trailing Edge |
- Chord Size |
Root = 10 in. Tip = 7.5 in |
- Thickness |
1-13/16 in / 46mm |
- Construction |
Wood - Built Up |
- Aileron Type |
Strip w/Torq Rods |
- Pre-Hinged |
Yes |
- Hinge Type |
Cloth or Real Hinge with Metal Pin. |
| Production after 990301 all Real Hinge with Metal Pin | |
- How Joined? |
Wood Dihedral Brace |
& 2 Wood Align Pins |
|
& 30 minute Epoxy Glue |
|
- How Mount to Fuse? |
2 Nylon Bolts |
- Servo for Wing? |
Yes 1 (not provided) |
- Servo Location |
Centre Bottom of Wing |
- Second Wing Servo |
Not provided for. Flaperons |
require user mods to wing |
|
| Model Color Choices | Primary Red or Blue or Yellow |
| Red Primary Color | |
- Color Top |
Red and White with Blue Trim |
- Color Bottom |
Red and Blue with White Trim |
- Color Pattern Top vs Bottom |
Different |

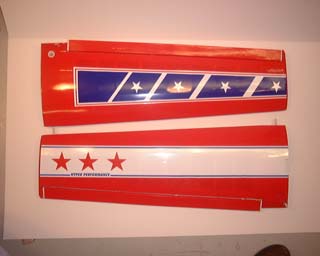

| - Picture of Red Primary Color Wing. Top wing shown represents view of wing from below, bottom wing shown represents view of wing from above. |
 |
| Blue Primary Color | |
- Color Top |
[?] |
- Color Bottom |
[?] |
- Color Pattern Top vs Bottom |
Different |
| Yellow Primary Color | |
- Color Top |
[?] |
- Color Bottom |
[?] |
- Color Pattern Top vs Bottom |
Different |
FUSELAGE |
|
- Length* |
42-3/8 in / 1076mm |
- Construction |
Wood - Built Up |
- Pushrods |
Preinstalled |
- Pushrod Material |
Production prior to 990228 used |
| Alum Tube w/threaded end. Production after 990301 used steel rod w/thread end in plastic guide tube. | |
Z-bend Rod for Throttle |
|
- Servo Tray |
Preinstalled. Universal |
Adjustable for F/JR/Air/HiT?] |
|
| Model Color Choices | Primary Red or Blue or Yellow |
- Red Primary Color |
Red and White with Blue Trim |

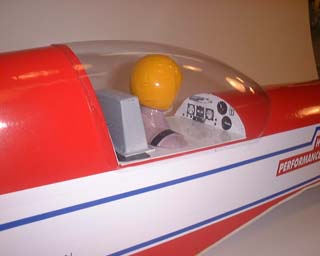

- Picture of Red Fuselage. |
 |
| - Blue Primary Color | [?] |
| - Yellow Primary Color | [?] |
- Servos Needed? |
1 Throttle, 1 Elev, 1 Rudder |
- Servo Locations |
Tray Centre Inside Fuse |
HORIZONTAL STAB/ELEV |
|
- Horiz Stab Area |
87 sq in |
- Elevator Area |
54 sq in |
- Construction |
Wood - Built Up |
- Pre-Hinged |
Yes |
- Hinge Type |
Cloth or Real Hinge with Metal Pin. |
| Production after 990301 all Real Hinge with Metal Pin | |
| - Airfoil | Slab |
- How Mount to Fuse? |
Glue with 30 Minute Epoxy |
- Support Struts? |
Yes - Aluminum Tube x 2 |
| Model Color Choices | Primary Red or Blue or Yellow |
| Red Primary Color | |
- Color Top |
Red and White with Blue Trim |
- Color Bottom |
Red and Blue with White Trim |
- Color Pattern Top vs Bottom |
Different |

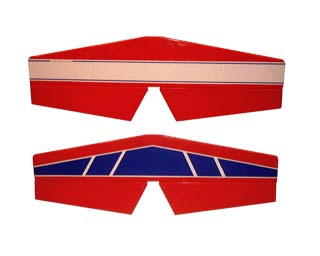

- Picture of Red Horizontal Stabilizer & Elevator. - Top View appears at top... Bottom View appears at bottom. |
 |
| Blue Primary Color | |
- Color Top |
[?] |
- Color Bottom |
[?] |
- Color Pattern Top vs Bottom |
Different |
| Yellow Primary Color | |
- Color Top |
[?] |
- Color Bottom |
[?] |
- Color Pattern Top vs Bottom |
Different |
VERTICAL STAB/RUDDER |
|
- Vertical Stab Area |
28 sq in |
- Rudder Area |
34.5 sq in |
- Construction |
Wood - Built Up |
- Pre-Hinged |
Yes |
- Hinge Type |
Cloth or Real Hinge with Metal Pin |
| Production after 990301 all Real Hinge with Metal Pin | |
- Airfoil |
Slab |
- How Mount to Fuse? |
Glue with 30 MInute Epoxy |
| Model Color Choices | Primary Red or Blue or Yellow |
| Red Primary Color | |
- Color |
Red and White with Blue Trim |
| - Color Pattern Left vs Right | Same |

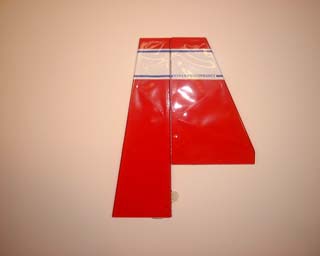

- Picture of Red Vertical Stabilizer and Rudder |
 |
| Blue Primary Color | |
- Color |
[?] |
| - Color Pattern Left vs Right | Same |
| Yellow Primary Color | |
- Color |
[?] |
| - Color Pattern Left vs Right | Same |
COVERING |
|
- "Sure Seal" |
Thermal Shrink Film |
- Self Adhesive |
Low Temperature |
- Patch Sheet Provided? |
Yes. Primary Color Sheet Provided |
- Patchable |
Yes. Use Patch Sheet Provided or |
aftermarket use Ultracote Plus or Ultracote Regular. |
|
| - Ultracote Approx Color Match | [Click Here] |
LANDING GEAR |
Tail Dragger |
-all parts supplied |
|
- Main Gear |
Aluminum 3 mm production |
| prior to 981130. Aluminum 4mm thereafter. | |
- with 2 chromed steel axles |
|
| - Stance - Between Wheels | - approx 14 in / 355 mm |
- Main Wheels |
Two of 2-7/16 in / 62 mm |
| - Main Wheel Pants | Yes |
| - Retract Ready? | No |
| - Retracts that fit... | na. Not Retract Ready. |
- Nose Gear |
na (tail dragger) |
- Nose Wheel |
na (tail dragger) |
| - Nose Wheel Pants | na (tail dragger) |
- Tail Wheel Assembly |
Provided. Assembled with wheel, prebent wire and bracket. |
| - Tail Wheel Steerable? | Yes. Via coupling direct to Rudder. |
- Tail Wheel |
One 1-3/16 in / 30 mm premounted on tail wheel assembly. |

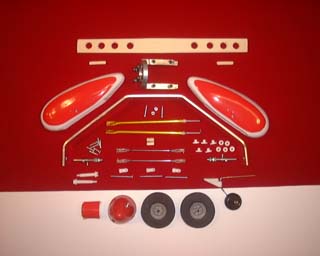

| - Picture of Main Gear, Wheels, Wheel Pants, Tail Wheel Assembly as shown in hardware pack |
 |
COWL |
|
| - included | Yes |
| - material | Fibreglass |
| - color | White with Primary Color Trim |
| Model Color Choices | Primary Red or Blue or Yellow |
| Red Primary Color of Model | |
- Color of Cowl |
Red and White with Blue Trim |

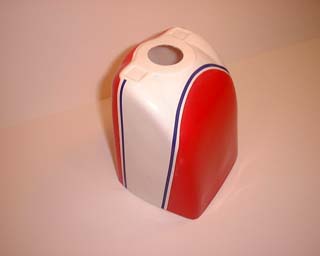

| - Picture of Cowl (Red) |
 |
| Blue Primary Color of Model | |
- Color of Cowl |
Blue and White with Red Trim |
| Yellow Primary Color of Model | |
- Color of Cowl |
Yellow and White with [____ Trim?] |
| - trim supplied | Yes. Red, Blue or Yellow |
| - trim applied by? | Factory |
ENGINE |
Not included. See Options |
- 2 cycle |
.40-.53 cu in |
- 4 cycle |
.52-.70 cu in |
ENGINE MOUNT |
Round Aluminum |
Clamp Type all pretapped |
|
- Firewall Predrilled for Mount? |
Yes |
- Predrilled orientation choices |
45 & 90 degrees from Vertical |
- Orientation Recommended |
45 degrees from upright |
- Mount Installed? |
No |
- Engine Lug Length - Max |
1-3/32 in / 27.7mm |
- Engine Width - Max |
At Crankcase = 1-11/32 in / 34 mm |
- Beam Length |
2-7/16 in / 61.9 mm |

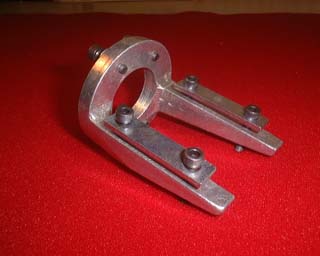

- Picture of Engine Mount from firewall side |
 |
- Power Module System |
Production prior to 981130 |
| utilized a single fixed firewall system. Production since 981201 has utilized the VMAR Power Module System incorporating fixed firewall aft and a removeable firewall forward. | |

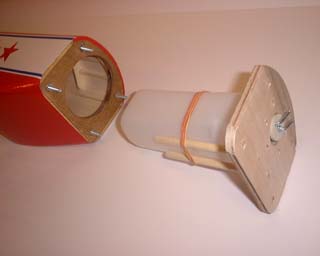

| - Picture of Power
Module completely removed from fuselage showing forward removeable firewall with tank
(right) and fuselage with aft fixed firewall and retaining studs (left). Power Module Sytstem Standard with all Extra's since 19990101. |
 |
RADIO |
Not included. See Options |
- 4 channels |
Need 4 servos |
FUEL TANK |
|
- Type |
Plastic |
- Size |
_____ oz |
- Clunk |
Yes |
- Silicone Tubing |
No |
- Metal Tubing |
2 - Prebent & fitted in stopper |
| HARDWARE SET | |
|
|
|
WEIGHT |
|
- Empty* - Assembled |
4.25 lbs / 1932 g |
- Flying Dry* - 2 cycle (.46) |
5.5 lbs / 2500 g |
- Flying Dry* - 4 cycle (.70) |
6.0 lbs / 2727 g |
WING LOADING |
|
- Empty* - Assembled |
19.2 oz/sq ft |
- Flying Dry* - 2 cycle |
24.9 oz/sq ft |
- Flying Dry* - 4 cycle |
27.2 oz/sq ft |
SET UP SPECS |
|
- CG Location |
3.5-4 in / 89-101 mm from wing leading edge at the root. |
- Aileron Throw |
5/16 in / 8 mm |
- Rudder Throw |
1-1/2 in / 38 mm |
- Elevator Throw |
1 in / 25 mm |
- Engine Thrust Line |
1-7/16 in / 36.5 mm from top of firewall |
- Engine Offset |
None |
SHIPPING BOX |
|
- Cardboard |
Brown |
- Size Length x Width x Depth |
38 x 18-3/8 x 5-7/8 in. (965 x 467 x 148) mm |
- Length plus Girth |
86-1/2 in / 2197 mm |
- Volume |
2.44 cu ft / .067 cu m |
- Weight with kit |
8.5 lbs / 3.86 Kg |
DISPLAY BOX |
|
- Cardboard |
White |
- Protected by |
Plastic Bag & Shipping Box |
- Size Length x Width x Depth |
36-3/4 x 18 x 5 in / 934 x 457 x 127 mm |
- Length plus girth |
82.75 in / 2102 mm |
- Volume |
1.91 cu ft / .0541 cu m |
- Weight with kit |
7.5 lbs / 3.4 Kg |
- Label front colors |
Colors = Blue, Black, Yellow, Red and White |
15-5/16 x 30-7/8 in / 389 x 784 mm |
|
| - Picture of Label Front | Click Here |
- Label end panel |
Colors = Blue, Black, Red, [Yellow?] and White |
4 x 16-3/8 in / 102 x 416 mm |
|
| - Picture of Label End Panel | Click Here |
* NOTES & LEGEND |
|
- na |
Not applicable this model |
| - blank data or information | Not known at this time |
| - [info?] | Estimated. Yet to be confirmed. |
- Area* of Wing |
Includes wing saddle area |
- Length* of Fuse |
From Spinner back plate |
to Trailing Edge of Rudder |
|
- Empty* Weight |
No radio, engine or fuel |
- Flying Dry* Weight |
With radio, engine. No fuel |
- Flying Dry* Loading |
With radio, engine. No fuel |
