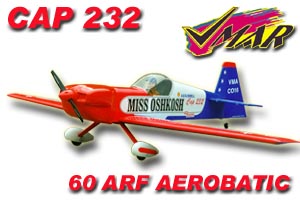

PART NUMBER |
VMA-C016 |
||||||||||||||||||||||||||||||||||||||||||
HISTORICAL INFO |
|||||||||||||||||||||||||||||||||||||||||||
- First Introduced |
2000 02 20 |
||||||||||||||||||||||||||||||||||||||||||
- Availability Status |
Shipping as of 2000 03 01 |
||||||||||||||||||||||||||||||||||||||||||
- Supercedes |
Brand New Release |
||||||||||||||||||||||||||||||||||||||||||
- Superceded by |
Brand New Release | ||||||||||||||||||||||||||||||||||||||||||
- Change Log Highlights | Click Here | ||||||||||||||||||||||||||||||||||||||||||
RECOMMENDED FOR |
Intermediate and up. Sport Aerobatics |
||||||||||||||||||||||||||||||||||||||||||
HOURS TO FINISH |
Eight |
||||||||||||||||||||||||||||||||||||||||||
WING |
|||||||||||||||||||||||||||||||||||||||||||
- Location on Fuselage |
Below Fuselage |
||||||||||||||||||||||||||||||||||||||||||
- Span |
64 in. (1625 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Area* |
625 sq in. (4032 sq cm) |
||||||||||||||||||||||||||||||||||||||||||
- Airfoil |
Symmetrical |
||||||||||||||||||||||||||||||||||||||||||
- Taper |
[None?/swept LE&/orTE ___deg?] |
||||||||||||||||||||||||||||||||||||||||||
- Chord Size |
[Root = ___in. Tip = ____in.? (Root = ___mm Tip = ____mm.?)] |
||||||||||||||||||||||||||||||||||||||||||
- Thickness |
[____ in.? (____ mm)] |
||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Aileron Type |
[?] |
||||||||||||||||||||||||||||||||||||||||||
- Pre-Hinged? |
Yes. [?] Hinges per Aileron |
||||||||||||||||||||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. Inboard and outboard on both ailerons. 4 pins per pinned hinge. | ||||||||||||||||||||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||||||||||||||||||||
- How Joined? |
[Wood Dihedral Brace |
||||||||||||||||||||||||||||||||||||||||||
& 2 Wood Align Pins |
|||||||||||||||||||||||||||||||||||||||||||
& 30 minute Epoxy Glue?] |
|||||||||||||||||||||||||||||||||||||||||||
- How Mount to Fuse? |
[Qty___ Nylon Bolts ?] |
||||||||||||||||||||||||||||||||||||||||||
- Servo for Wing? |
[Yes 2 (not provided)?] |
||||||||||||||||||||||||||||||||||||||||||
- Servo Location |
[?] |
||||||||||||||||||||||||||||||||||||||||||
- Second Wing Servo |
[Yes. Flaperon |
||||||||||||||||||||||||||||||||||||||||||
ready?] |
|||||||||||||||||||||||||||||||||||||||||||
- Color Top |
Red on White with Blue Trim & [?] Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Bottom |
[?] on [?] with [?] Trim & [?] Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Pattern Top vs Bottom |
[Different?] |
||||||||||||||||||||||||||||||||||||||||||
FUSELAGE |
|||||||||||||||||||||||||||||||||||||||||||
- Length* |
50 in. (1270 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Pushrods |
Preinstalled |
||||||||||||||||||||||||||||||||||||||||||
- Pushrod Material |
Steel Rods w/thread on both ends. Running in plastic guide tubes. Variable Length two piece rod for throttle w/thread on both ends. |
||||||||||||||||||||||||||||||||||||||||||
- Servo Tray |
Preinstalled. Universal Adjustable for F/JR/Air/HiT |
||||||||||||||||||||||||||||||||||||||||||
- Color |
Red White and Blue with [?] Trim & [?] Panel Lines. | ||||||||||||||||||||||||||||||||||||||||||
- Servos Needed? |
1 Throttle, 1 Elev, 1 Rudder |
||||||||||||||||||||||||||||||||||||||||||
- Servo Locations |
Tray Centre Inside Fuse |
||||||||||||||||||||||||||||||||||||||||||
HORIZONTAL STAB/ELEV |
|||||||||||||||||||||||||||||||||||||||||||
- Horiz Stab Span | _____ in. (____ mm) | ||||||||||||||||||||||||||||||||||||||||||
- Horiz Stab Area |
_____ sq in. (____ mm) | ||||||||||||||||||||||||||||||||||||||||||
- Elevator Area |
_____ sq in. (____ sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Pre-Hinged |
Yes. [?] Hinges. |
||||||||||||||||||||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. Inboard and outboard on stabilizers.4 Pins per pinned hinge. | ||||||||||||||||||||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||||||||||||||||||||
- Airfoil |
[Slab?/True Flying Surface. Not Slab?] |
||||||||||||||||||||||||||||||||||||||||||
- How Mount to Fuse? |
[Glue with Epoxy?] |
||||||||||||||||||||||||||||||||||||||||||
- Support Struts? |
[No. Not Required?] |
||||||||||||||||||||||||||||||||||||||||||
- Color Top |
[?] and [?] with [?] Trim & [?] Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Bottom |
[?] and [?] with [?] Trim & [?] Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Pattern Top vs Bottom |
[Same?/Different?] |
||||||||||||||||||||||||||||||||||||||||||
VERTICAL STAB/RUDDER |
|||||||||||||||||||||||||||||||||||||||||||
- Vertical Stab Area |
_____ sq in. (____ sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Rudder Area |
_____ in. (____ sq cm) | ||||||||||||||||||||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||||||||||||||||||||
- Pre-Hinged |
Yes. [?] Hinges. |
||||||||||||||||||||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. Upper and Lower on Rudder. 4 pins per pinned hinge. | ||||||||||||||||||||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||||||||||||||||||||
- Airfoil |
[Slab?/True Flying Surface. Not Slab?] |
||||||||||||||||||||||||||||||||||||||||||
- How Mount to Fuse? |
[Glue with Epoxy?] |
||||||||||||||||||||||||||||||||||||||||||
- Color |
[?] and [?] with [?] Trim & [?] Panel Lines | ||||||||||||||||||||||||||||||||||||||||||
- Color Pattern Left vs Right | [Same?/Different?] | ||||||||||||||||||||||||||||||||||||||||||
COVERING |
|||||||||||||||||||||||||||||||||||||||||||
- "Sure Seal" |
Thermal Shrink Film |
||||||||||||||||||||||||||||||||||||||||||
- Self Adhesive |
Low Temperature |
||||||||||||||||||||||||||||||||||||||||||
- Patchable |
Yes. Use patch sheet provided or aftermarket use Ultracote Plus or Ultracote Regular. |
||||||||||||||||||||||||||||||||||||||||||
- Patch Sheet Provided? |
Yes. [?] and [?] and [?]. Use Factory Patch Sheets if possible. Aftermarket covering will not match colors exactly. |
||||||||||||||||||||||||||||||||||||||||||
- Ultracote
System Approx
Color Match
Note: We recommend Ultracote Plus and a Heat GUN for patching using after market covering. |
|
||||||||||||||||||||||||||||||||||||||||||
LANDING GEAR |
Tail Dragger |
||||||||||||||||||||||||||||||||||||||||||
- Main Gear |
Fibreglass with 2 chromed steel axles |
||||||||||||||||||||||||||||||||||||||||||
- Stance - Between Wheels | ___ in between inboard side of wheels. | ||||||||||||||||||||||||||||||||||||||||||
- Main Wheels |
[Two of ___ in. (____mm) ? Ultralight Treaded?] |
||||||||||||||||||||||||||||||||||||||||||
- Main Wheel Pants | Yes | ||||||||||||||||||||||||||||||||||||||||||
- Wheels Pants made of? | [?] | ||||||||||||||||||||||||||||||||||||||||||
- Retract Ready? | na | ||||||||||||||||||||||||||||||||||||||||||
- Retracts that fit... | na | ||||||||||||||||||||||||||||||||||||||||||
- Nose Gear |
na. Tail Dragger |
||||||||||||||||||||||||||||||||||||||||||
- Nose Wheel |
[One of ___ in. (____ mm)? Ultralight Treaded?] |
||||||||||||||||||||||||||||||||||||||||||
- Nose Wheel Pants | na. Tail Dragger | ||||||||||||||||||||||||||||||||||||||||||
- Nose Wheel Pant made of? | [?] | ||||||||||||||||||||||||||||||||||||||||||
- Tail Wheel Assembly |
Yes |
||||||||||||||||||||||||||||||||||||||||||
- Tail Wheel |
[One ___ in. (_____ mm)?] |
||||||||||||||||||||||||||||||||||||||||||
- Tail Wheel Steering Mechanism | [Connect to Rudder?] |
||||||||||||||||||||||||||||||||||||||||||
COWL |
|||||||||||||||||||||||||||||||||||||||||||
- included | Yes | ||||||||||||||||||||||||||||||||||||||||||
- material | FIbreglass | ||||||||||||||||||||||||||||||||||||||||||
- color | Red with [?] and [?] Trim | ||||||||||||||||||||||||||||||||||||||||||
- trim supplied | [na?/No?/Yes?] | ||||||||||||||||||||||||||||||||||||||||||
- trim applied by? | [Consumer?/Factory?] | ||||||||||||||||||||||||||||||||||||||||||
ENGINE |
Not included. See Options |
||||||||||||||||||||||||||||||||||||||||||
- 2 cycle |
.60-.90 cu in. (____ - ____ cc) (Enya 60XF4ALC Recommended) |
||||||||||||||||||||||||||||||||||||||||||
- 4 cycle |
[.___-.___ cu in? (_____-_____cc)] | ||||||||||||||||||||||||||||||||||||||||||
ENGINE MOUNT |
T-bar Beams? Aluminum Clamp Type all pretapped |
||||||||||||||||||||||||||||||||||||||||||
- Firewall Predrilled for Mount? |
[No?/Yes?] |
||||||||||||||||||||||||||||||||||||||||||
- Predrilled orientation choices |
[na?/_____?] |
||||||||||||||||||||||||||||||||||||||||||
- Orientation Recommended |
[Up?/Inv?45 degrees from upright?] |
||||||||||||||||||||||||||||||||||||||||||
- Mount Installed? |
[Yes at ____degress?] |
||||||||||||||||||||||||||||||||||||||||||
- Engine Lug Length - Max | [? in] | ||||||||||||||||||||||||||||||||||||||||||
- Engine Width - Max | At Crankcase = ____ in. (_____mm) | ||||||||||||||||||||||||||||||||||||||||||
- Beam Length | [? in. (____mm)] | ||||||||||||||||||||||||||||||||||||||||||
- Power Module System |
Yes. Fixed firewall aft. Removeable firewall forward secured to aft firewall with mounting bolt system. Engine mounts and Engine mounted to removeable firewall. |
||||||||||||||||||||||||||||||||||||||||||
RADIO |
Not included. See Options |
||||||||||||||||||||||||||||||||||||||||||
- 4 channels |
Need 5 servos |
||||||||||||||||||||||||||||||||||||||||||
SERVO TRAY | Preinstalled. Universal adjustable for F/JR/Air/HiT. | ||||||||||||||||||||||||||||||||||||||||||
- Picture of Servo Tray with universally adjustable sliders highlighted in purple shading. Adjust to fit length of Futaba, Airtronics, JR or Hi-Tech standard servo. Tighten screws to lock slider into position. | |||||||||||||||||||||||||||||||||||||||||||
FUEL TANK |
|||||||||||||||||||||||||||||||||||||||||||
- Type |
[Plastic?] |
||||||||||||||||||||||||||||||||||||||||||
- Size |
10.5 oz / 300 cc |
||||||||||||||||||||||||||||||||||||||||||
- Clunk |
Yes |
||||||||||||||||||||||||||||||||||||||||||
- Silicone Tubing |
No |
||||||||||||||||||||||||||||||||||||||||||
- Metal Tubing |
2 - Prebent & fitted in stopper |
||||||||||||||||||||||||||||||||||||||||||
WEIGHT |
|||||||||||||||||||||||||||||||||||||||||||
- Empty* - Assembled |
____ lbs (_____g) | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 2 cycle |
____ lbs ( _____g) | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 4 cycle |
____ lbs (_____g) | ||||||||||||||||||||||||||||||||||||||||||
WING LOADING |
|||||||||||||||||||||||||||||||||||||||||||
- Empty* - Assembled |
____ oz/sq ft @ ___ lbs | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 2 cycle |
____ oz/sq ft @ ___ lbs | ||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* - 4 cycle |
____ oz/sq ft @ ___ lbs | ||||||||||||||||||||||||||||||||||||||||||
SET UP SPECS |
|||||||||||||||||||||||||||||||||||||||||||
- CG Location |
____ in. (____ mm) from LE | ||||||||||||||||||||||||||||||||||||||||||
- Aileron Throw. (Use Low Rate for first flights and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||||||||||||||||||||
- Rudder Throw at Widest section of Rudder. (Use Low Rate for first flights and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||||||||||||||||||||
- Elevator Throw (Use Low Rate for first flights and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||||||||||||||||||||
- Engine Thrust Line |
___ in. (____ mm) from top of firewall |
||||||||||||||||||||||||||||||||||||||||||
- Engine Offset |
[None?] |
||||||||||||||||||||||||||||||||||||||||||
SHIPPING BOX |
|||||||||||||||||||||||||||||||||||||||||||
- Cardboard |
Brown |
||||||||||||||||||||||||||||||||||||||||||
- Size Length x Width x Depth |
41 x 20-1/2 x 8-3/4 in. (1041 x 521 x 218 mm) |
||||||||||||||||||||||||||||||||||||||||||
- Length plus Girth |
99-1/4 in. (2521 mm) | ||||||||||||||||||||||||||||||||||||||||||
- Volume |
4.2 cu ft (.118 cu m) | ||||||||||||||||||||||||||||||||||||||||||
- Weight with kit |
____ lbs (_____g) | ||||||||||||||||||||||||||||||||||||||||||
SHIPPING INFO | |||||||||||||||||||||||||||||||||||||||||||
- Shipping Method in Canada. | Canpar most locations (enroute time 1-3 business days west, 5-10 business days east). Canada Post to remote locations in the south and to YT, NWT, Nunavut in the north. | ||||||||||||||||||||||||||||||||||||||||||
- Shipping Method to USA lower 48 states | UPS (enroute time 5-10 business days west, 10-14 business days east) | ||||||||||||||||||||||||||||||||||||||||||
- Shipping method to Hawaii, USA, APO or USA possessions. | United States Postal Service (enroute time 14-28 business days surface, 3-7 business days expedited) | ||||||||||||||||||||||||||||||||||||||||||
- Shippable outside Canada or USA by Air or Surface Mail? | - No. Length plus Girth exceeds limit of 78.8 in (2 m) and/or Length exceeds limit of 39.4 (1 m) | ||||||||||||||||||||||||||||||||||||||||||
- Shippable outside Canada or USA by Air or Surface Mail if separated into multiple boxes? | - [No? Depends of Fuselage length without engine mount, cowl or rudder mounted] | ||||||||||||||||||||||||||||||||||||||||||
- Shippable outside Canada or USA by Fedex? | - Yes. Refer to www.fedex.com for quote. Size, weight and location will be required. | ||||||||||||||||||||||||||||||||||||||||||
DISPLAY BOX |
|||||||||||||||||||||||||||||||||||||||||||
- Cardboard |
[White?] |
||||||||||||||||||||||||||||||||||||||||||
- Protected by |
[Plastic Bag & Shipping Box?] |
||||||||||||||||||||||||||||||||||||||||||
- Size Length x Width x Depth |
__ x___ x___ in.( ___ x ___ x ___ mm) |
||||||||||||||||||||||||||||||||||||||||||
- Length plus girth |
___ in. (___ mm) | ||||||||||||||||||||||||||||||||||||||||||
- Volume |
___ cu ft ( _____ cu m) | ||||||||||||||||||||||||||||||||||||||||||
- Weight with kit & protective plastic bag. |
____ lbs (_____g) | ||||||||||||||||||||||||||||||||||||||||||
- Label front colors |
Colors = [?] |
||||||||||||||||||||||||||||||||||||||||||
- Label covers all of Display Box except Bottom? | Yes | ||||||||||||||||||||||||||||||||||||||||||
- Label front size | __ x___ x___ in. ( ___ x ___ x ___ mm) |
||||||||||||||||||||||||||||||||||||||||||
- Label end panel colors |
Colors = [?] |
||||||||||||||||||||||||||||||||||||||||||
- Label end panel size | __ x___ x___ in. ( ___ x ___ x ___ mm) |
||||||||||||||||||||||||||||||||||||||||||
- Label side panel colors | Colors = [?] | ||||||||||||||||||||||||||||||||||||||||||
- Label side panel size | __ x___ x___ in. (___ x ___ x ___ mm) | ||||||||||||||||||||||||||||||||||||||||||
* NOTES & LEGEND |
|||||||||||||||||||||||||||||||||||||||||||
- na |
Not applicable this model |
||||||||||||||||||||||||||||||||||||||||||
- blank data or information | Not known at this time | ||||||||||||||||||||||||||||||||||||||||||
- [info?] | Estimated. Yet to be confirmed. | ||||||||||||||||||||||||||||||||||||||||||
- Area* of Wing |
Includes wing saddle area |
||||||||||||||||||||||||||||||||||||||||||
- Length* of Fuse |
From Spinner back plate to Trailing Edge of Rudder |
||||||||||||||||||||||||||||||||||||||||||
- Empty* Weight |
No radio, engine or fuel |
||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* Weight |
With radio, engine. No fuel |
||||||||||||||||||||||||||||||||||||||||||
- Flying Dry* Loading |
With radio, engine. No fuel |
