PART NUMBER |
VMA-B190CFS Fuselage Assembly plus either of |
||||||||||||||||||||||||
- VMA-B190CWF Standard Flat Bottom Wing Set, OR | |||||||||||||||||||||||||
- VMA-B190CWSS Optional Semi-Symmetrical Wing Set available Summer 2001 | |||||||||||||||||||||||||
HISTORICAL INFO |
|||||||||||||||||||||||||
- First Introduced |
2000 10 01 |
||||||||||||||||||||||||
- Availability Status |
Booking for May-June 2001 |
||||||||||||||||||||||||
- Supercedes |
Brand New Release |
||||||||||||||||||||||||
- Superceded by |
Brand New Release | ||||||||||||||||||||||||
- Change Log Highlights | Click Here | ||||||||||||||||||||||||
RECOMMENDED FOR |
Experienced Flyers. Great for large scale RC enthusiasts, float flying, glider towing, glider cradle launches, cargo carrying, cameras, airborne video, instrumentation. The RC Pickup Truck of the Air! If you've got something to haul or lift in the RC world... the VMAR Beaver 120 ARF is your airborne freighter! |
||||||||||||||||||||||||
HOURS TO FINISH |
8-12 |
||||||||||||||||||||||||
INDEX to DETAILED INFORMATION | |||||||||||||||||||||||||
- Location on Fuselage |
Above Fuselage |
||||||||||||||||||||||||
- Span |
120 in. (3048 mm) |
||||||||||||||||||||||||
- Area* |
1650 sq in. (10645 sq cm) |
||||||||||||||||||||||||
- Airfoil |
Flat Bottom Standard. Semi-Symmetrical optionally available after June 2001 |
||||||||||||||||||||||||
- Taper |
No. Constant Chord |
||||||||||||||||||||||||
- Chord Size |
12-1/2 in. (317 mm) |
||||||||||||||||||||||||
- Thickness |
1-11/16 in. (43 mm) |
||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||
- Aileron Type |
Outboard strip activated from aileron servo in each wing. |
||||||||||||||||||||||||
- Ailerons Pre-Hinged? |
Yes. 4 Hinges per Aileron |
||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. All aileron hinges pinned. 4 pins per pinned hinge. | ||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||
- Flap Type | Inboard barn door style activated from flap servo in each wing. | ||||||||||||||||||||||||
- Flaps Pre-Hinged? | Yes. 4 Hinges per Flap. | ||||||||||||||||||||||||
- Flaps Factory Pinned? | Yes. All flap hinges pinned. 4 pins per pinned hinge. | ||||||||||||||||||||||||
- How Joined? |
Can be diassembled into left and right wing halves. Wings are joined using 2 wood wing spar joiners, 2 wood dowels, 2 metal bolts with butterfly nuts and two aluminum wing struts. |
||||||||||||||||||||||||
- How Mount to Fuse? |
2 nylon bolts, 2 wood dowels and two aluminum wing struts. |
||||||||||||||||||||||||
- Servo for Wing? |
Yes 2. 1 for each aileron. |
||||||||||||||||||||||||
- Servo Location |
Bottom of each wing half, located approx mid aileron. |
||||||||||||||||||||||||
- Second Wing Servo |
Requires 1 servo for each of the two ailerons. Use standard servos having torque 40 oz-in or more. |
||||||||||||||||||||||||
- Color Top |
Red with blue and white trim. | ||||||||||||||||||||||||
- Color Bottom |
Red with blue and white trim. | ||||||||||||||||||||||||
- Color Pattern Top vs Bottom |
Similar |
||||||||||||||||||||||||
- Picture of Wing Top and Bottom.
Note
|
|||||||||||||||||||||||||
Blowup of detailing with panel lines and rivets. | |||||||||||||||||||||||||
- Length* |
69 in. (1753 mm) |
||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||
- Pushrods |
Preinstalled |
||||||||||||||||||||||||
- Pushrod Material |
Steel Rods w/thread on both ends. Running in plastic guide tubes to rudder and elevator. Two rods to elevator, two rods to rudder. One piece rod for throttle w/thread on one end and EZ connector on the other. |
||||||||||||||||||||||||
- Servo Tray |
2 pre-installed. Universal Adjustable for F/JR/Air/HiT |
||||||||||||||||||||||||
- Color |
Red with blue and white trim. | ||||||||||||||||||||||||
- Servos Needed? |
1 Throttle, 2 Elev, 2 Rudder |
||||||||||||||||||||||||
- Servo Locations |
Throtte servo is located in forward cockpit area. Elevator and Rudders servos are located in servo trays in cargo bay area. |
||||||||||||||||||||||||
- Picture of Fuselage as seen from right side. | |||||||||||||||||||||||||
- Size of Engine compartment, Cockpit and Cargo Bay. |

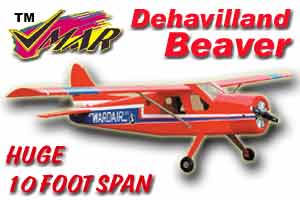

The VMAR Beaver 120 ARF is the Pickup Truck of
the RC Scene. Easy to operate with huge cargo carrying capacity and the
ability to lift big loads... the VMAR Beaver 120 ARF is perfect for
cameras, video, instrumentation, electronics etc.
We have had all sorts of questions about the sizes of the Engine compartment, Cockpit and Cargo Bay. Here is some information that may prove helpful if you are considering getting your own airborne freighter!
"Long"
refers to dimensions running fore and aft. "Wide" refers to
dimensions that lie across the fuselage from left to right and
"High" refers to dimensions that run from bottom to top i.e.
perpendicular to the plane of the wing.
-
The Engine compartment is approx 8.5" wide x 9.75" high x
5.5" long. The cowl is a min of approx 8.5" diameter inside
all the way around.
-
The Cockpit is approx 8" wide x 6" high x 8" long. The
6" high is limited by the dashboard. Most of the space is 7-8"
high. Please keep in mind that the Cockpit is vacant and available only
if you do NOT install the optional Cockpit Set consisting of a two seat
and two pilot arrangement.
-
The Cargo Bay is approx 9" wide x 7" high by 8" long.
This is above the control rod and servo tray area.
All
measurements are conservative and rounded down a bit.
|
||||||||||||||||||||||||
- Horiz Stab Span | 35-1/4 in. (895 mm) | ||||||||||||||||||||||||
- Horiz Stab Area |
204 sq in. (1316 sq cm) | ||||||||||||||||||||||||
- Elevator Area |
53 sq in. (342 sq cm) each. Two independent elevators. | ||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||
- Pre-Hinged |
Yes. 3 Hinges in each of the two elevators. |
||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. All elevator hinges are pinned. 4 pins per hinge. | ||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin. |
||||||||||||||||||||||||
- Airfoil |
True flying surface. Not slab. |
||||||||||||||||||||||||
- How Mount to Fuse? |
Install into machined slot in fuselage and glue with 30 Minute Epoxy. |
||||||||||||||||||||||||
- Support Struts? |
No. Not Required |
||||||||||||||||||||||||
- Color Top |
Red | ||||||||||||||||||||||||
- Color Bottom |
Red | ||||||||||||||||||||||||
- Color Pattern Top vs Bottom |
Same |
||||||||||||||||||||||||
- Picture of Horizontal Stabilizer and Elevator. Top and Bottom views shown. | |||||||||||||||||||||||||
- Vertical Stab Area |
79 sq in. (510 sq cm) | ||||||||||||||||||||||||
- Rudder Area |
54 sq in. (348 sq cm) | ||||||||||||||||||||||||
- Construction |
Wood - Built Up |
||||||||||||||||||||||||
- Pre-Hinged |
Yes. 3 Hinges. |
||||||||||||||||||||||||
- Hinges Factory Pinned? | Yes. All rudder hinges pinned. 4 pins per pinned hinge. | ||||||||||||||||||||||||
- Hinge Type |
Real Hinge with Metal Pin |
||||||||||||||||||||||||
- Airfoil |
True flying surface. Not slab. |
||||||||||||||||||||||||
- How Mount to Fuse? |
Install into machined slot in fuselage and glue with 30 Minute Epoxy. |
||||||||||||||||||||||||
- Color |
Red with white lettering and Canada Flag | ||||||||||||||||||||||||
- Color Pattern Left vs Right | Same | ||||||||||||||||||||||||
- Picture of Vertical Stabilizer and Rudder. | |||||||||||||||||||||||||
- "Sure Seal" |
Thermal Shrink Film |
||||||||||||||||||||||||
- Self Adhesive |
Low Temperature |
||||||||||||||||||||||||
- Patchable |
Yes. Use patch sheet provided or aftermarket use Ultracote Plus or Ultracote Regular. |
||||||||||||||||||||||||
- Patch Sheet Provided? |
Yes Red. Use Factory Patch Sheets if possible. Aftermarket covering will not match colors exactly. |
||||||||||||||||||||||||
- Ultracote
System Approx
Color Match
Note: We recommend Ultracote Plus and a Heat GUN for patching using after market covering. Note: Color Names with * are poor matches to factory colors. |
|
||||||||||||||||||||||||
Tail Dragger |
|||||||||||||||||||||||||
- Main Gear |
Fibreglass with 2 chromed steel axles. |
||||||||||||||||||||||||
- Stance - Between Wheels | 29-30 in. (749 mm) between inboard side of wheels. | ||||||||||||||||||||||||
- Main Wheels |
Two of 4 in. (102 mm) Ultralight Diamond Treaded. |
||||||||||||||||||||||||
- Main Wheel Pants | na | ||||||||||||||||||||||||
- Wheels Pants made of? | na | ||||||||||||||||||||||||
- Retract Ready? | na | ||||||||||||||||||||||||
- Retracts that fit... | na | ||||||||||||||||||||||||
- Nose Gear |
na. Tail Dragger. |
||||||||||||||||||||||||
- Nose Wheel |
na. Tail Dragger. |
||||||||||||||||||||||||
- Nose Wheel Pants | na | ||||||||||||||||||||||||
- Nose Wheel Pant made of? | na | ||||||||||||||||||||||||
- Tail Wheel Assembly |
Provided. Heavy duty prebent wire & bracket premounted. |
||||||||||||||||||||||||
- Tail Wheel |
One 2 in. (50 mm) diameter. |
||||||||||||||||||||||||
- Tail Wheel Steering Mechanism | Steerable via internal connection to rudder control rod. |
||||||||||||||||||||||||
- Picture of Main Gear, Clamps, Wheels, Wheel Collars, Gear Doors and Tail Wheel Assembly as shown in hardware pack | |||||||||||||||||||||||||
Big Picture of Landing Gear Set with Labels | |||||||||||||||||||||||||
- included | Yes | ||||||||||||||||||||||||
- material | Fibreglass | ||||||||||||||||||||||||
- color | Red with blue & white trim | ||||||||||||||||||||||||
- trim supplied | Yes | ||||||||||||||||||||||||
- trim applied by? | Factory | ||||||||||||||||||||||||
- Picture of Cowl | |||||||||||||||||||||||||
Not included. See Options |
|||||||||||||||||||||||||
- 2 cycle |
1.20 cu in & larger. (7.7 - 60 cc) (GMS-120PRO recommended for wheel based operations) |
||||||||||||||||||||||||
- 4 cycle |
1.55 cu in & larger (10 - 60 cc) Enya 155 Four Stroke Recommended). For floats use at least Enya 155 Four Stroke. For towing or glider cradle operations, use at least 25 cc or larger. | ||||||||||||||||||||||||
T-bar Beams. Aluminum Clamp Type all pretapped |
|||||||||||||||||||||||||
- Firewall Predrilled for Mount? |
No. To allow after market orientation of engine |
||||||||||||||||||||||||
- Predrilled orientation choices |
Modellers choice |
||||||||||||||||||||||||
- Orientation Recommended |
90-125 degree rotated for two strokes. Modellers choice on four strokes. |
||||||||||||||||||||||||
- Mount Installed? |
No. To allow after market orientation of engine |
||||||||||||||||||||||||
- Engine Lug Length - Max | 1-5/8 in. (41 mm) | ||||||||||||||||||||||||
- Engine Width - Max | At Crankcase = 6+ in. (150+ mm) when mounting upright or inverted. 6+ in. (150+ mm) when mounting with 90 or 270 degrees of rotation. | ||||||||||||||||||||||||
- Beam Length | 2-7/8 in. (74 mm) flat useable. 3-1/2 in. (89 mm) from firewall to tips. | ||||||||||||||||||||||||
- Picture of Engine Mount. Front View. Clamps can accomodate wide range of engine mounting lug sizes. | |||||||||||||||||||||||||
- Power Module System |
Yes. Fixed firewall aft. Removable firewall forward secured to aft firewall with mounting bolt system. Engine mounts, tank & engine mounted to removeable firewall. |
||||||||||||||||||||||||
- Picture of Power Module partially removed from fuselage showing forward removeable firewall with tank (right) and fuselage with aft fixed firewall and retaining studs (left). | |||||||||||||||||||||||||
More Pictures of Power Module | |||||||||||||||||||||||||
Not included. See options |
|||||||||||||||||||||||||
- 4 channels |
Need 7-9 standard servos having at least 40 oz in of torque. Use 7 without flaps. Use 9 with flaps. Airtronics (Sanwa) RD6000 Recommended. |
||||||||||||||||||||||||
SERVO TRAY | 2 Preinstalled. Universal adjustable for F/JR/Air/HiT. | ||||||||||||||||||||||||
- Picture of Servo Tray with universally adjustable sliders highlighted in purple shading. Adjust to fit length of Futaba, Airtronics, JR or Hi-Tech standard servo. Tighten screws to lock slider into position. | |||||||||||||||||||||||||
- Type |
Plastic |
||||||||||||||||||||||||
- Size |
26.4 oz (750 ml) |
||||||||||||||||||||||||
- Clunk |
Yes |
||||||||||||||||||||||||
- Silicone Tubing |
No |
||||||||||||||||||||||||
- Metal Tubing |
2 - Prebent & fitted in stopper |
||||||||||||||||||||||||
HARDWARE SET | |||||||||||||||||||||||||
- Empty* - Assembled |
10 lbs (4545 g) | ||||||||||||||||||||||||
- Flying Dry* - 2 cycle |
11 - 12 lbs (5000 - 5454 g) | ||||||||||||||||||||||||
- Flying Dry* - 4 cycle |
12 - 13 lbs (5454 - 5909 g) | ||||||||||||||||||||||||
- Empty* - Assembled |
14.0 oz/sq ft @ 10 lbs | ||||||||||||||||||||||||
- Flying Dry* - 2 cycle |
16.1 oz/sq ft @ 11.5 lbs | ||||||||||||||||||||||||
- Flying Dry* - 4 cycle |
17.5 oz/sq ft @ 12.5 lbs | ||||||||||||||||||||||||
- CG Location |
At the second fuselage former which is same location as the leading edge of the recessed portion of the centre of the wing. CG is measured with the engine, tank, radio gear and all components installed but WITH NO FUEL IN THE TANK. | ||||||||||||||||||||||||
- Aileron Throw. (Use Low Rate for first flights and all training and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||
- Rudder Throw at Widest section of Rudder. (Use Low Rate for first flights and all training and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||
- Elevator Throw (Use Low Rate for first flights and all training and/or if your radio does not support dual rates) |
|
||||||||||||||||||||||||
- Flaps Throw | Up to 30 degrees downward deflection. | ||||||||||||||||||||||||
- Tailwheel Throw | Factory Set. Proportional to rudder deflection. | ||||||||||||||||||||||||
- Engine Horizontal Thrust Line |
Factory line across front face of forward removable firewall. |
||||||||||||||||||||||||
- Engine Vertical Thrust Line | Vertically up and down through centre of forward removeable firewall and lieing perpendicular to the horizontal thrust line. | ||||||||||||||||||||||||
- Engine Thrust Angle. |
None. 1-3 degrees of right thrust may assist with take offs but is not required. The power module system allows modellers to easily set any particular horizontal and/or vertical thrust at any time before or after assembly. |
||||||||||||||||||||||||
Fuselage Assembly | |||||||||||||||||||||||||
- Cardboard |
Brown |
||||||||||||||||||||||||
- Size Length x Width x Depth |
64-1/4 x 16-1/2 x 13 in. (1613 x 419 x 329 mm) |
||||||||||||||||||||||||
- Length plus Girth |
123-1/4 in. (3109 mm) | ||||||||||||||||||||||||
- Volume |
7.98 cu ft (.223 cu m) | ||||||||||||||||||||||||
- Weight with kit |
28 lbs (12727 g) | ||||||||||||||||||||||||
- Other Info | Product is double boxed for enhanced resistance to damage during shipping. . | ||||||||||||||||||||||||
SHIPPING BOX | Wing Set | ||||||||||||||||||||||||
- Cardboard |
Brown |
||||||||||||||||||||||||
- Size Length x Width x Depth |
64-1/4 x 16-1/2 x 5-3/4 in. (1613 x 413 x 147 mm) |
||||||||||||||||||||||||
- Length plus Girth |
108-3/4 in. (2733 mm) | ||||||||||||||||||||||||
- Volume |
3.53 cu ft (.099 cu m)] | ||||||||||||||||||||||||
- Weight with kit |
14 lbs (6464 g) | ||||||||||||||||||||||||
- Other Info | Product is double boxed for enhanced resistance to damage during shipping. . | ||||||||||||||||||||||||
SHIPPING INFO | |||||||||||||||||||||||||
- Shipping Method in Canada. | Canpar most locations (enroute time 1-3 business days west, 5-10 business days east). Canada Post to remote locations in the south and to YT, NWT, Nunavut in the north. | ||||||||||||||||||||||||
- Shipping Method to USA lower 48 states | FedEx Ground (enroute time 5-10 business days west, 10-14 business days east) | ||||||||||||||||||||||||
- Shipping method to Hawaii, USA, APO or USA possessions. | United States Postal Service Priority Mail (enroute time approx 7 business days) | ||||||||||||||||||||||||
- Shippable outside Canada or USA by Air or Surface Mail? | No. Length plus Girth exceeds limit of 78.8 in. (2 m) and/or Length exceeds limit of 39.4 in. (1 m) | ||||||||||||||||||||||||
- Shippable outside Canada or USA by Air or Surface Mail if separated into multiple boxes? | No. Fuselage and Wing Set are already packed in separate boxes. It is not possible to further separate components. | ||||||||||||||||||||||||
- Shippable outside Canada or USA by Fedex? | Yes. Refer to www.fedex.com for quote to your location. Size, weight and location will be required. See box sizes and weights above. | ||||||||||||||||||||||||
Shipping box only. | |||||||||||||||||||||||||
- Accuracy of Dimensions | Dimensions provided here are within +/- 3% in production. | ||||||||||||||||||||||||
- na |
Not applicable this model |
||||||||||||||||||||||||
- blank data or information | Not known at this time | ||||||||||||||||||||||||
- [info?] | Estimated. Yet to be confirmed. | ||||||||||||||||||||||||
- Area* of Wing |
Includes wing saddle area |
||||||||||||||||||||||||
- Length* of Fuse |
From Spinner back plate to Trailing Edge of Rudder |
||||||||||||||||||||||||
- Empty* Weight |
No radio, engine or fuel |
||||||||||||||||||||||||
- Flying Dry* Weight |
With radio, engine. No fuel |
||||||||||||||||||||||||
- Flying Dry* Loading |
With radio, engine. No fuel |
©Richmond RC Supply Ltd. All Rights Reserved. Unauthorized commercial use strictly prohibited. |
Prices, Specifications, Features and Availability subject to change without notice |
Production Colors and Graphic Schemas may differ from that shown. |
Artwork, text and information for the use of consumers and Richmond RC customers only |
For information contact webmaster@richmondrc.com |
2004-05-15 11:49:19
