More Pictures of Spitfire 45-60ARF Wing

.

Top of Right Wing and Bottom of Left Wing

Cross sectional view of wing root before wings are joined. Note cavities for spar joiner and servo, holes for two alignment dowel.

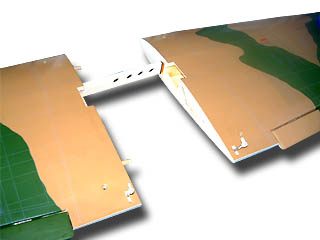

Wings being joined. [Note spar joiner, two alignment dowels and access bays for installation of steel bolts and servo. ]

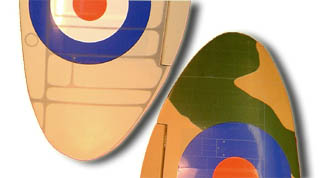

Picture of Wing Tip from above and below illustrating elliptical shape.

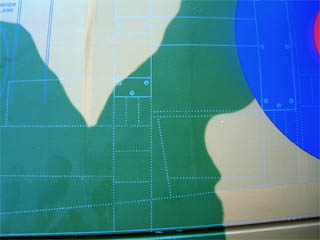

Picture of Wing Graphic Detailing. Top lettering, rivets and panel lines

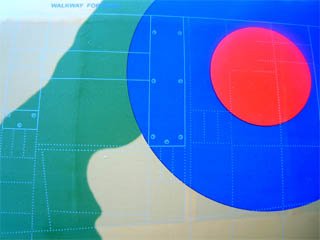

Picture of Wing Graphic Detailing. Top lettering, rivets and panel lines

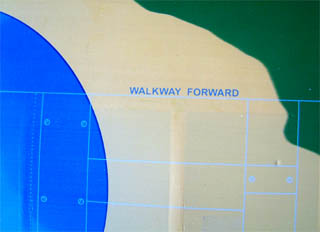

Picture of Wing Graphic Detailing. Top lettering, rivets and panel lines

Picture of Wing Graphic Detailing. Bottom  detailed camoflage detailing with panel lines and rivets.

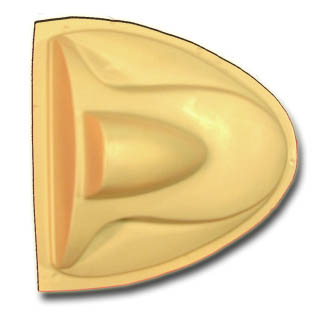

Picture of Airscoop.
