More Pictures of Spitfire Power Module System

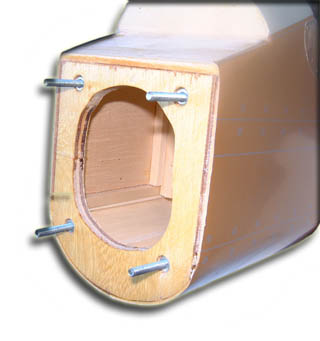

Picture of fuselage with aft fixed firewall and retaining studs. Power Module consisting of forward removeable firewall and tank has been completely removed from fuselage



Picture of Power Module during insertion process. The forward removeable firewall and tank assembly (right) are slid into the fuselage to mate with the fixed aft firewall (left).

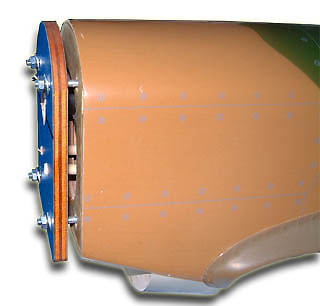

Picture showing almost fully inserted Power Module.

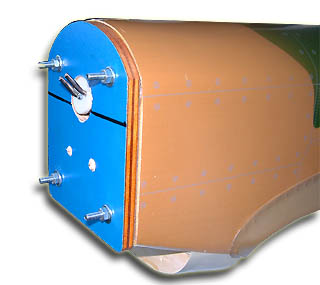

Picture showing completely inserted and installed Power Module after retaining nuts applied to studs.
