More Pictures of Extra 300 Power Module System

 e0014 red 300x201 drop shadow copy.jpg (23593 bytes)

Picture of Power Module completely removed from fuselage showing forward removeable firewall with tank (right) and fuselage with aft fixed firewall and retaining studs (left).

Power Module Sytstem Standard with all Extra's since 19990101.

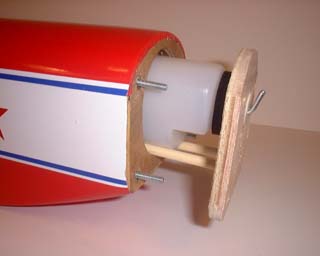

Picture of Power Module during insertion process. The forward removeable firewall and tank assembly (right) are slid into the fuselage to mate with the fixed aft firewall (left).




Picture showing completely inserted and installed Power Module after retaining nuts applied to studs. Engine Mount mounting holes visible in Firewall.
