More Pictures of DORNIER DO27 45-61 ARF Wing

Top of rIght wing and bottom of left wing. Note servo cover plates on bottom of wing. Inboard servo is for flaps (usage is optional) and outboard servo is for flaps. Cavity visible near root provides for servo wiring exit into fuselage. Wiring tubes preinstalled in wing.

Cross sectional view of wing root before wings are joined. Note cavity for spar joiner and holes for two alignment dowels.

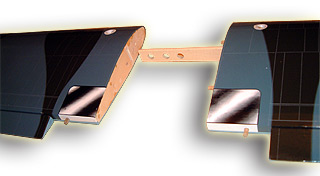

Wing halves about to be joined. Note wing spar joiner and alignment dowels.

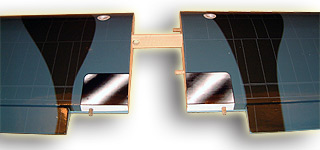

Wing halves partially joined. Note wing spar joiner and alignment dowels.

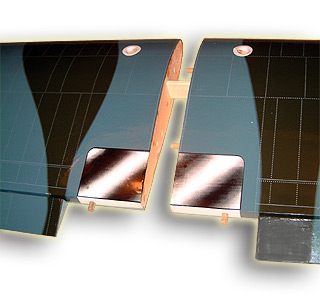

Wing halves almost joined. Note trailing edge setback at center and dowels to key into fuselage.

Detailed Scale like graphics! Rivets, panel lines etc. All detailing inside the POLYCOTE Enhanced Covering System. With the POLYCOTE ECS Enhanced Graphics System there is NO seam between the flame red tip and the main body of the wing.

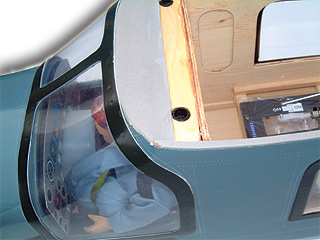

Wing saddle area on top of fuselage. Note factory installed foam cushion (gray) applied to wing saddle and beneath leading edge of wing. Note wing bolt attachment points (black).
