More Pictures of DORNIER DO27 45-61 ARF ECS Power Module System

Picture of Power Module System.  Removeable forward firewall shown in place. Note thrust line indicated on forward face.  .
Forward firewall and tank completely removed from fuselage revealing fuel tank compartment..
  Pictures below illustrate the Power Module system and how it works with and engine and VMAR engine mount. PIctures for illustrative purposes only... not from this model.

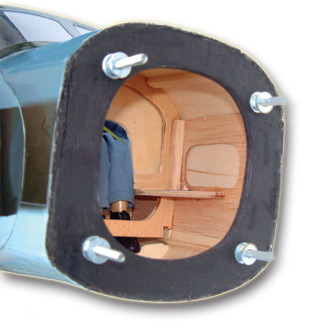

Picture of fuselage with aft fixed firewall and retaining studs. Power Module consisting of forward removable firewall and tank has been completely removed from fuselage



Picture of Engine Mounts and Engine installed on forward removable firewall prior to inserting power module into fuselage. Note Engine is at approx 195 degree rotation from upright.

Picture similar to above taken from right front quarter.

Picture of Power Module during insertion process. The forward removable firewall and tank assembly (right) are slid into the fuselage to mate with the fixed aft firewall (left).

Picture showing almost fully inserted Power Module.



Picture showing completely inserted and installed Power Module after retaining nuts applied to studs.
