More Pictures of F4U Corsair 60-76 ARF Power Module System

Picture of Power Module System.  Removeable forward firewall shown to the left with Fuel tank suspended on back side.
Forward firewall and tank partially inserted into fuselage.
Forward firewall and tank fully inserted into fuselage.

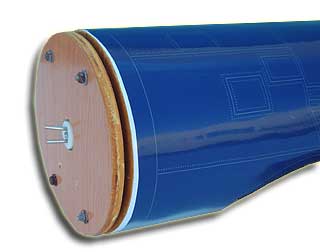

Forward firewall and tank fully inserted into fuselage with mounting nuts attached.
  Pictures below illustrate the Power Module system and how it works with and engine and VMAR engine mount. PIctures for illustrative purposes only... not from this model.

Picture of fuselage with aft fixed firewall and retaining studs. Power Module consisting of forward removable firewall and tank has been completely removed from fuselage


Picture of Engine Mounts and Engine installed on forward removable firewall prior to inserting power module into fuselage. Note Engine is at approx 195 degree rotation from upright.

Picture similar to above taken from right front quarter.

Picture of Power Module during insertion process. The forward removable firewall and tank assembly (right) are slid into the fuselage to mate with the fixed aft firewall (left).

Picture showing almost fully inserted Power Module.


Picture showing completely inserted and installed Power Module after retaining nuts applied to studs.
