More Pictures of RCAF Harvard  Fuselage

at0014c 300x201 drop shadow copy.jpg (21245 bytes)

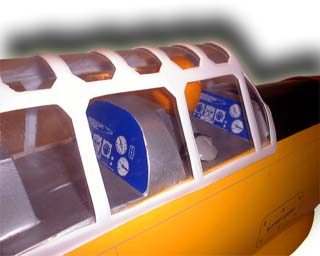

View from right side of fuselage slightly aft of cockpit looking forward.

Pilot and Cockpit Graphics Included


View from left side of fuselage near firewall looking aft.

Pilot figure paint scheme varies from model to model.

Note Scale Detailing on Fuselage

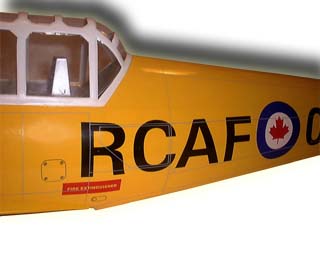

Fuselage RCAF detailing shown from left side

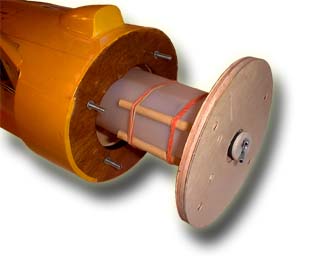

Power Module System shown with tank partially inserted into fuselage

View from right side of fuselage forward of firewall looking aft.

Power Module Sytstem Standard with all Harvards

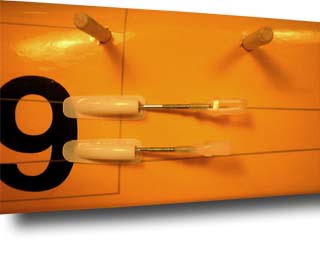

Control Rods for Rudder and elevator left side. Note exit guides, Dubro Clevises on threaded steel rods.Horizontal Stabilizer dowels visible at top. Dubro_Inside_990122e_copy.jpg (28657 bytes)

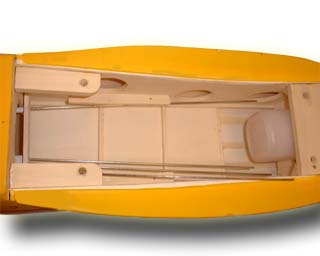

Inside of fuselage showing tank location and radio bay.

View from bottom of fuselage with tail left.

Note double wall fuselage construction to provide scale like external appearance

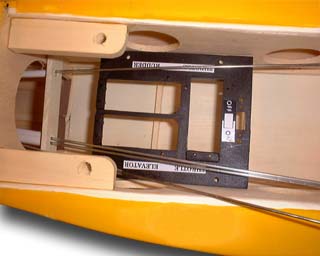

Inside of fuselage showing universal servo tray and steel control rods in guide tubes

View from bottom of fuselage looking slightly aft.

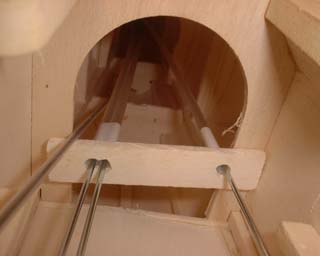

Internal view of inverted fuselage taken from radio bay looking aft.

Note all wood construction. No Foam.

Note steel control rods in plastic guide tubes. Positioning bar supplied, to be final positioned after radio installation
